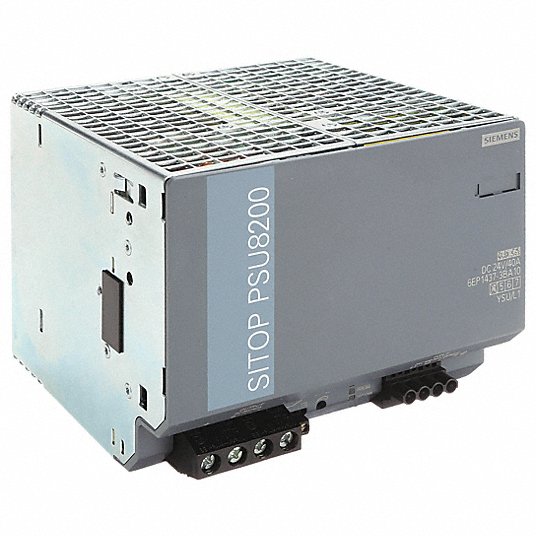

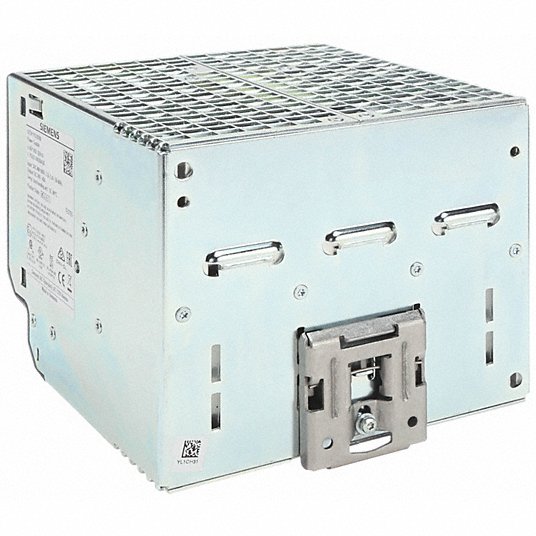

Siemens DC Power Supply, Style: Switching, Mounting: DIN Rail 6EP1437-3BA00
4,484
DC Power Supply
Reduce temperature dissipation in cabinets and help save energy costs with this SITOP compact power supply.
- It features a slim, space-saving design with high efficiencies across the entire load range.
- It also features plug-in terminals for simple electrical connection and minimized connection time.
- Use in low-power applications. With a width of just 22.5 to 52.5 mm, the power supply unit requires up to 1/3 less space on a mounting rail than comparable devices.
- It also offers high efficiency across the entire load range.
- The wide-range input enables problem-free connection to single-phase AC networks as well as to DC networks.
- The plugin terminals also help ensure user-friendly connection.
| Input Voltage | 320 to 575V AC |
|---|---|
| Output Voltage | 24V DC |
| Power Rating | 960W |
| Output Amps | 40 |
| Mounting | DIN Rail |
| Style | Switching |
| Case Material | Metal Case |
| Height | 125 mm |
| Width | 150 mm |
| Depth | 150 mm |
| Series | SITOP PSU300M |
| Hz | 50 to 60 Hz |
| Phase - Electrical | Three |
| Peak Amps | 120 |
| IP Rating | 20 |
| Output Noise | 100mV |
| Hold Up Time | Greater Than 15 msec |
| Status Indicator | Green LED |
| NEMA Rating | 1 |
| Operating Temp. Range | -25 Degrees to 70 Degrees C |
| Standards | CE, cUL us, cCSAus, CB, ATEX, Class I Div 2 (Group ABCD, T4), GL, ABS |
| Weight | 3.5 KG |
| Code | BD-6EP1437-3BA00 |
| ID | 1008576 |
