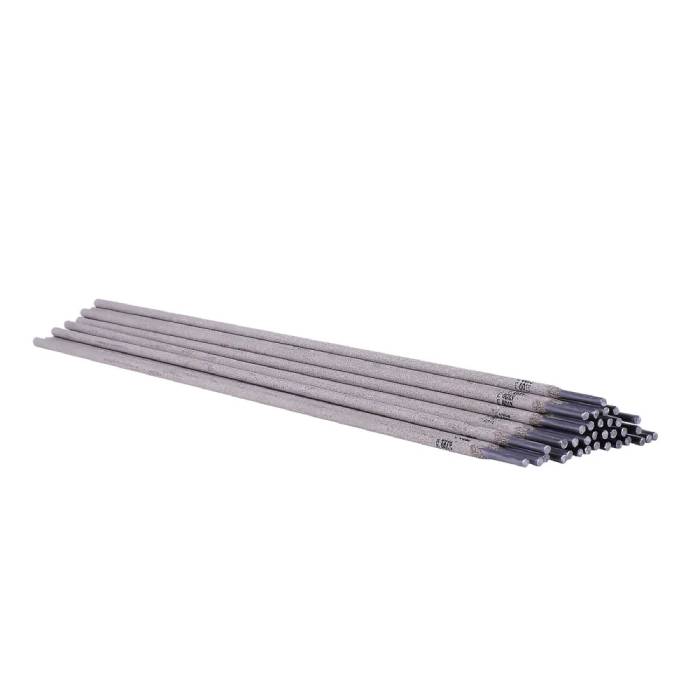

Spark Welding Electrode, 2.6 X 350 mm, 70-90 Ampere, ( 4 Kg / PKT ) E6013-2.6
11
Welding Electrode
Split in 4 payments of 2.73
monthly without fees , learn more
Split it into 4 payments of 2.73
interest-free , learn more
Application/Properties:
- General-purpose electrodes for assembly work, workshop, and repair welding, especially suited for vertical-down welding.
- Good gap bridging and well suited for tack welding.
- Can be used on galvanized, primer-painted, and slightly rusted components.
- For assembly work, electrodes can be used in all positions without changing the current setting.
- Smooth, slightly concave welds blend into the base metal without undercut. Slag partly self-releasing.
Industry:
- Unalloyed structural steel: St33 to St52-3
- Boiler Plates: HI, HII, 17Mn4
- Pipe Steels: to St52.4, St35.8 to17Mn4, StE210.7 to StE360.7 including corresponding TM-grades.
- Fine Grain Structural Steels: StE255 to StE355, WStE255 to WStE355.
- Shipbuilding Steels: A, B.
- Cast Steel: GS-38 to GS-52
| AWS | ASME SFA-5.1 / E 6013 |
|---|---|
| DIN 1913 | E 43 22 R (C) 3 |
| EN499 | E 38 0 RC 11 |
| Diameter | 2.6mm |
| Length | 350mm |
| Current (Ampere) | 70 - 90 |
| Yield Strength | >390 N/mm2 |
| Tensile Strength | 470 - 590 N/mm2 |
| Elongation L.=5D. | >22% |
| Impact Strength | 80 J at +20oC |
| Impact Strength | 50 J at 0oC |
| Weight | 4 KG |
| ID | 2667571 |
