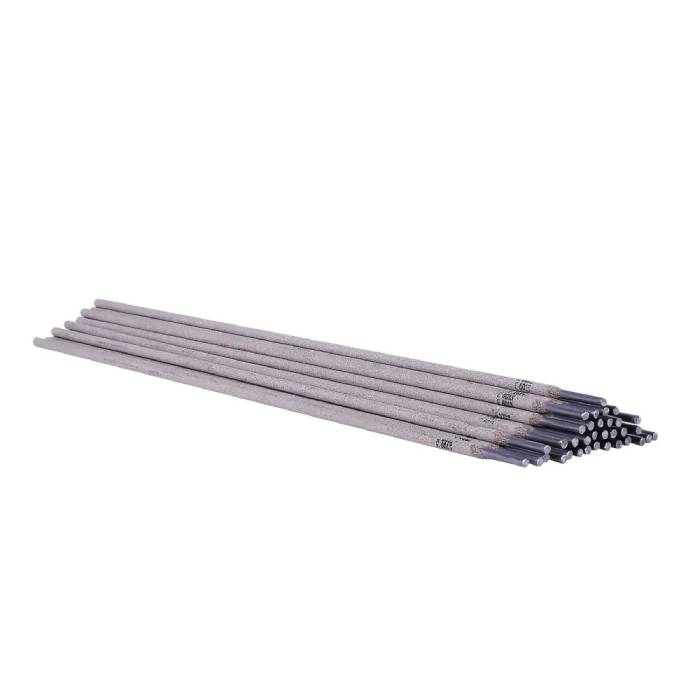

Spark Welding Electrode, 4.0 X 450 mm, 140-190 Ampere, ( 5 Kg / PKT ) E7018-4.0
13
Welding Electrode
Split in 4 payments of 3.02
monthly without fees , learn more
Split it into 4 payments of 3.02
interest-free , learn more
Application/Properties:
- Electrode for producing crack-free welded joints with good toughness properties even on steels having carbon content up to 0.4%.
- Weld metal recovery is approx 120% and has good operating characteristics also in positional welding.
- Weld metal exhibits good toughness properties down to -40 0C.
- The electrode is suitable for depositing buffer layers on steels having higher carbon content.
Industry:
- Unalloyed structural steel: St33 to St52-3, St50-2 to St60-2.
- Boiler Plates: HI, HII, 17Mn4.
- Pipe Steels: to St52.4, St35.8 to 17Mn4, StE210.7 to StE360.7 including corresponding TM-grades.
- Fine Grain Structural Steels: StE255 to StE355, WStE255 to WStE355, TStE255 to TStE355.
- Shipbuilding Steels: A, B, D, E.
- Cast Steel: GS-38 to GS-52.
| AWS | ASME SFA-5.1 / E 7018 |
|---|---|
| DIN 1913 | E 51 55 B 10 |
| EN499 | E 42 6 B 42 H10 |
| Diameter | 4.0mm |
| Length | 450mm |
| Current (Ampere) | 140 - 190 |
| Yield Strength | >420 N/mm2 |
| Tensile Strength | 500 - 640 N/mm2 |
| Elongation L.=5D. | >22% |
| Impact Strength | 200 J at +20oC |
| Impact Strength | 100 J at –60oC |
| Weight | 5 KG |
| ID | 2667582 |
