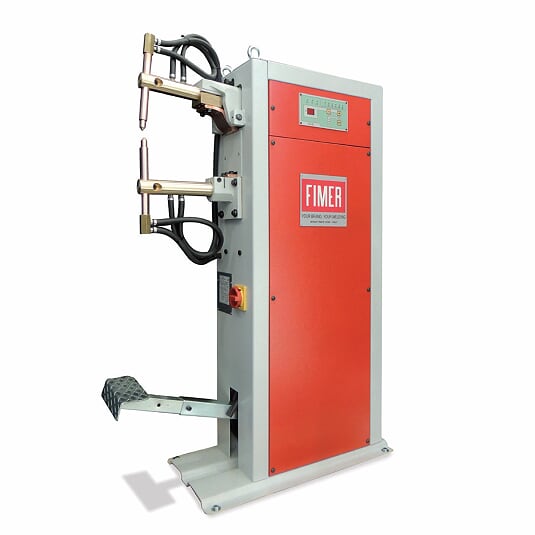

Fimer Spot Welding FC55
11,384
Spot Welding machine
Excellent welding on all weldable metals
- Electronic adjustment of the welding current and time
- Removable arms ,adjustable in length
| Single phase input 50 | 60 Hz / 2x400 V |
|---|---|
| Max. welding power | 55 kVA |
| Installed power | 16 kVA |
| Cross section connecting cables | 10 mm |
| Delayed Fuse | 50 A |
| Open Circuit Voltage | 3.8 V |
| Max. welding current | 12.3 kA |
| Electrode force max (6 bar) | 220 daN |
| Water consumption a 300 kPa (3 bar) | 3.8 l/min. |
| Maximum welding thickness (flat) | 6+6 mm |
| Maximum welding thickness (round) | 15+15 mm |
| Weight | 135 Kg |
| Dimensions (WxLxH) | 330x760x1200 mm |
| Weight | 135 KG |
| Code | 92-60-072 |
| ID | 2188523 |
