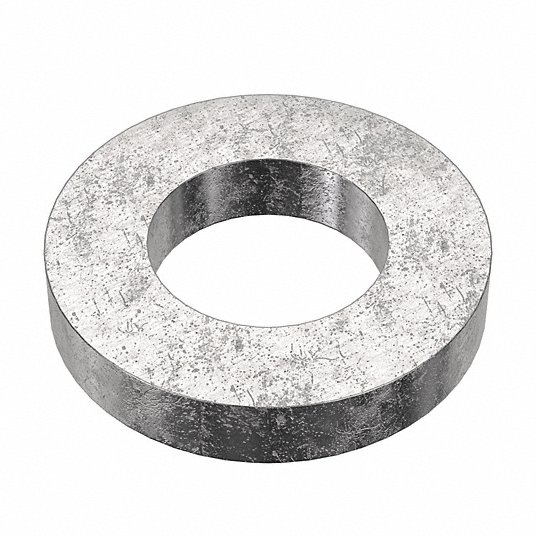

Grainger Approved Stainless Steel Flat Washer, Type B, Plain Fastener Finish, Fits Bolt Sizes #1, Pkg of 10 WASB#1N8
29
41
Flat Washer
Features
- The most common kind of round washer.
- Flat Washers feature 2 flat surfaces for distributing the force/stress of a nut or bolt.
- They also help to reduce friction and heat during the installation of a threaded fastener.
| Flat Washer Type | Type B Narrow Flat Washer |
|---|---|
| Washer Basic Material | Stainless Steel |
| System of Measurement | Inch |
| Washer Material Grade | 18-8 |
| Fastener Finish | Plain |
| Fits Bolt Sizes | #1 |
| Washer Inside Dia. | 5/64 in |
| Washer Outside Dia. | 5/32 in |
| Thickness | 0.022 in to 0.028 in |
| Thickness Tolerance | 0.022 in to 0.028 in |
| Color | Silver |
| Rockwell Hardness | B70 |
| For Use With | Softer Materials |
| Washer Standards | ANSI B18.22.1 |
| Package Weight | 0.001 |
| Package Quantity | 10 |
| Weight | 0.00045 KG |
| ID | 1663034 |
