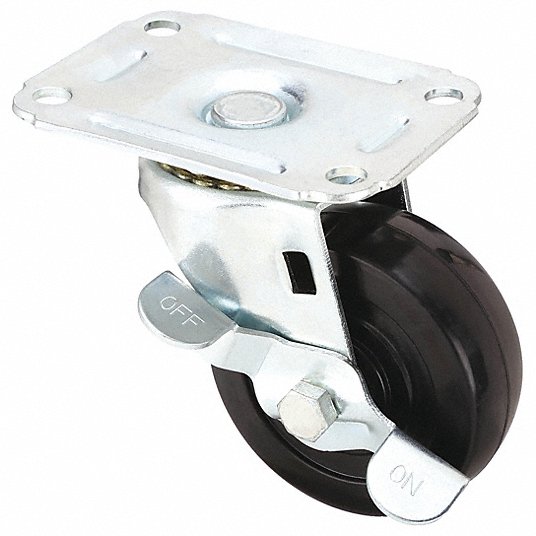

Grainger Approved Standard Plate Caster, Swivel, Rubber, 100 lb, 3 in Wheel Dia. 1UHU2
61
Plate Caster
Features
- Light-duty standard plate casters are installed onto the bottom of carts, dollies, business machines, store fixtures, food-service equipment, and other equipment that will be moved manually at moderate speeds.
- These casters are best suited for applications where they will be transporting relatively light loads along smooth, flat surfaces and won't encounter shock loading, such as in offices, retail stores, schools, and government buildings. Sometimes known as institutional plate casters, these light-duty standard plate casters have zinc-plated steel frames.
- Standard plate casters have kingpins that securely join the casters' mounting plates to their frames.
- They are used in nearly every industry and are the most common type of caster used for general purpose applications.
- The casters' mounting plates install onto the bottom of machinery, carts, or other equipment, and the casters allow the equipment to roll to reduce effort when moving or repositioning it.
- These casters are available in swivel and rigid versions.
- The swivel casters can rotate 360°, allowing equipment to change directions while rolling.
- The rigid casters roll in a straight line.
- Two rigid plate casters will often be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
| Caster Sub-Type | Swivel |
|---|---|
| Load Rating | 100 lb |
| Wheel Dia. | 3 in |
| Wheel Width | 1 in |
| Mounting Height | 3 3/4 in |
| Wheel | Tread Material / Rubber |
| Wheel | Tread Hardness Rating / Firm |
| Wheel | Tread Hardness / 90 Shore A |
| Wheel | Tread Color / Black |
| Wheel Bearing Type | Plain |
| Swivel Raceway Type | Double Ball |

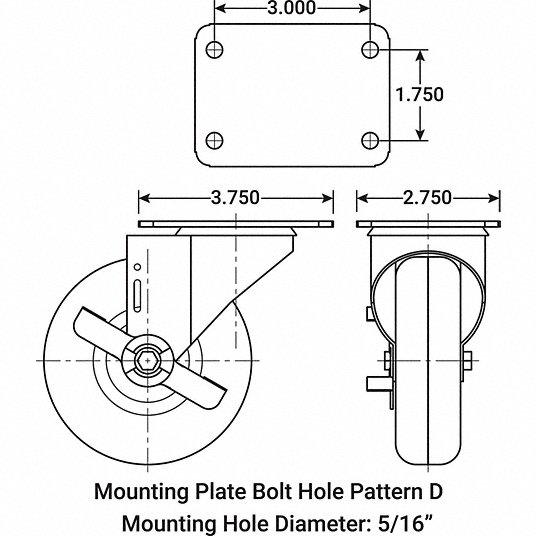

| Mounting Plate Bolt Hole Pattern | D |
| Mounting Plate Size | 2 3/4 in x 3 3/4 in |
| Inside Bolt Hole Spacing | 1-3/4 in x 3 in |
| Outside Bolt Hole Spacing | 1-3/4 in x 3 in |
| Mounting Bolt Dia. | 5/16 in |
| Number of Mounting Holes | 4 |
| Swivel Lock Type | No Lock Included |
| Caster Brake Type | Side Pedal Brake |
| Frame Finish | Zinc Plated |
| Caster Frame Material | Steel |
| Tread Shape | Standard |
| Includes Thread Guards | No |
| Wheel Core Material | Rubber |
| Core Color | Black |
| Non-Marking | No |
| Number of Wheels | 1 |
| Features | Corrosion Resistant |
| Weight | 0.6 KG |
| Code | BD-1UHU2 |
| ID | 1664537 |
