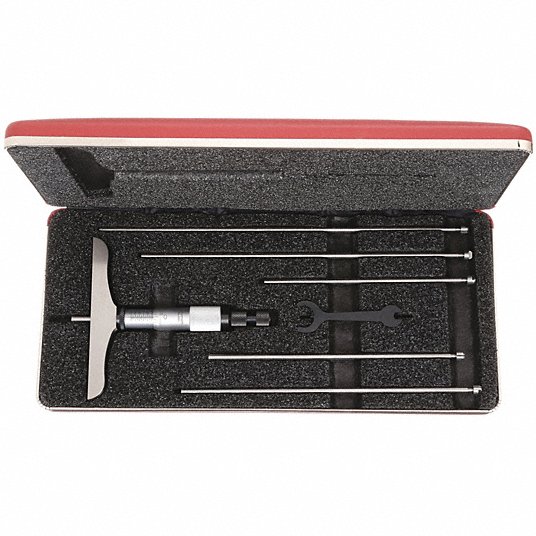

Mechanical Depth Micrometer, Range 0 in to 6 in, Base Style Full, Accuracy +/-0.0001 in2ZUD3 445BZ-6RL
904
1,291
Micrometer
Split in 4 payments of 225.77
monthly without fees , learn more
Split it into 4 payments of 225.77
interest-free , learn more
Mechanical depth micrometers are used to measure the depth of holes, slots, shoulders, and other projections.
- They’re operated with a high-precision ratchet thimble.
- Measurements are read on a vernier scale.
- Interchangeable measuring rods with different depth ranges can be used with these micrometers.
- Combination Ratchet and Speeder for Uniform Pressure and Quicker Adjustment
- Satin Chrome Reading Surface is Glare Free and Resists Rust
| Range | 0 in to 6 in |
|---|---|
| Resolution | 0.001 in |
| Accuracy | +/-0.0001 in |
| Base Length | 4 in |
| Base Style | Full |
| Dimension Type | Inch |
| Number of Measuring Rods | 6 |
| Operation Type | Mechanical |
| Rod Diameter | 5/32 in |
| Anvil Material | Steel |
| Anvil Shape | Round |
| Case Included | Yes |
| Case Type | Padded Case |
| Includes | Spanner Wrench |
| Lock Nut Type | Ring |
| Maximum Measurement - Inch | 6 in |
| Minimum Measurement - Inch | 0 in |
| Movement of Screw | 1 in |
| Number of Gauges | 6 |
| Rotating Spindle (Yes | No) / No |
| Spindle Material | Steel |
| Spindle Shape | Flat |
| Thimble Type | Ratchet |
| Weight | 1 KG |
| ID | 989646 |
