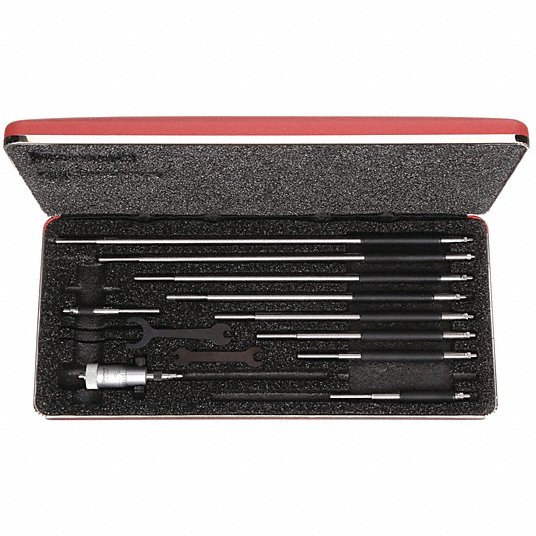

Mechanical Solid-Rod Inside Micrometer, Inside Micrometer Type Solid Rod Inside Micrometer2ZUC5 124BZ
1,156
1,651
Micrometer
Mechanical solid-rod inside micrometers use interchangeable rods to measure the inside dimension of holes, tubes, pipes, cylinders, rings and other parts.
- The measurement is taken with the vernier scale.
- Adjustable For Length
- Measuring Rods are Solid
- Hardened and Ground Anvils
- Quick-Reading Figures
- 6-1/2 in Long Handle is Available
| Range | 2 in to 12 in |
|---|---|
| Resolution | 0.001 in |
| SPC Output | No |
| Movement of Screw | 1/2 in |
| Inside Micrometer Type | Solid Rod Inside Micrometer |
| Number of Measuring Rods | 10 |
| Number of Micrometers | 1 |
| Operation Type | Mechanical |
| Thimble Type | Plain |
| Case Included | Yes |
| Case Type | Padded Case |
| Contact Point Material | Steel |
| Contact Point Shape | Curved |
| Includes | Case |
| Lock Nut Type | Screw |
| Maximum Measurement - Inch | 12 in |
| Minimum Measurement - Inch | 2 in |
| Rod Diameter | 1/4 in |
| Accuracy | +/-0.005 in |
| Weight | 1 KG |
| ID | 989643 |
