Out of Stock

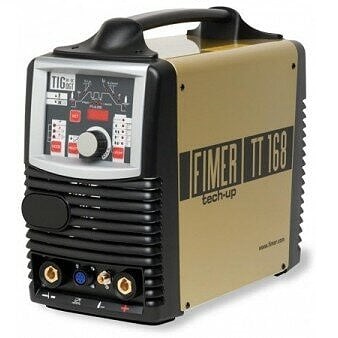

Fimer TIG Welding Machine Inverter, 3.2Kva TT168DGT
3,932
Welding Machine
- Job save
- H2O available
- Display 3.5 inch
- Tig and MMA
- Made in Italy
Split in 4 payments of 982.96
monthly without fees , learn more
Split it into 4 payments of 982.96
interest-free , learn more
TIG (Tungsten Inert Gas) welding is an arc welding process with an infusible electrode (made of tungsten) under the protection of inert gas, which can be realized with or without filler metal (only the fusion of the base material or with possible addition of filler material in the form of rod). TIG welding is one of the most popular methods, it provides joints of high quality but it requires specialized operators. This welding technology was initially developed for aerospace industry.
| voltage | 230 V |
|---|---|
| Output Range | 5-165 A |
| Duty cycle | 60%: 165 A |
| 100%: 130 A | |
| Open circuit voltage | 85 V |
| Frequency | 50 Hz - 60 Hz |
| Mains fuses | 16 A |
| Max. connected power | 3.2 KvA |
| Recommended generator rating | 4.1 KvA |
| Cos | 0.7 |
| Protection classification | IP 21 s |
| Insulation class | H |
| Torch connection | Dinse |
| Dinse | 50 mm2 |
| Weight | 9.7Kg |
| Dimensions (mm) (WxLxH) | 220X480X410 mm |
| Weight | 9.7 KG |
| Code | 92-60-004 |
| ID | 2216207 |
