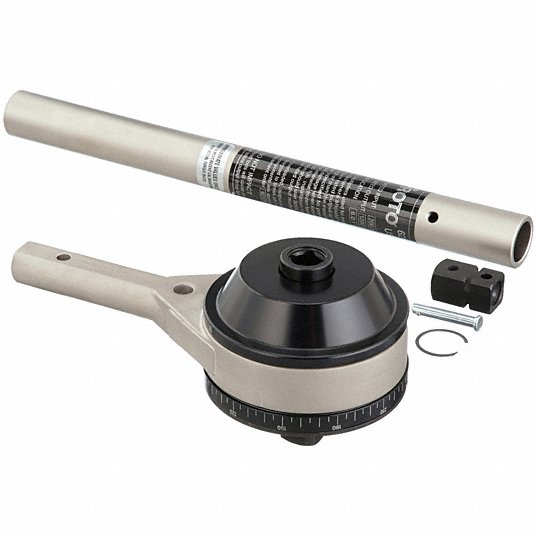

Proto Torque Multiplier, Max. Rated Input 200 ft-lb, Max. Rated Output 1,200 ft-lb, 1/2x3/4 inch J6212
5,100
Torque Multiplier
Features
- Handheld torque multipliers are for use with hand or nonimpact power tools and are used in combination with a torque wrench to increase torque.
- They have internal gears to multiply the amount of torque that can be applied to a fastener without additional manual force being applied.
- Multipliers are held between the socket end of the torque wrench and the fastener that needs tightening.
| Max. Rated Input | 200 ft-lb |
|---|---|
| Max. Rated Output | 1, 200 ft-lb |
| Female Input Square Drive | 1/2 in |
| Male Output Square Drive | 3/4 in |
| Torque Ratio | 1:6 |
| Torque Measurement Type | Foot-Pound |
| Mountable | No |
| Accuracy | +/-5% |
| Measurement Type | SAE |
| Insulated | No |
| Nonsparking | No |
| Overload Protection | Yes |
| Calibration Certificate Included | No |
| Antibacklash Device | 3 Position Self Contained |
| Material | Bi Material |
| Finish | Chrome |
| Color | Black |
| Gear Ratio | 1:6 |
| Gear System | Single Stage Planetary |
| Overall Height | 4 in |
| Overall Length | 19 19/32 in |
| Overall Width | 3 15/16 in |
| Handle Length | 14 1/8 in |
| Head Thickness | 4 in |
| Angle of Turn Protractor | 5 Degrees Increments |
| Includes | Male Plug |
| Reaction System | Tubular Reaction Bar |
| Weight | 9.1 lb |
| Head Dia. | 3 15/16 in |
| Weight | 5.85 KG |
| ID | 1159094 |
