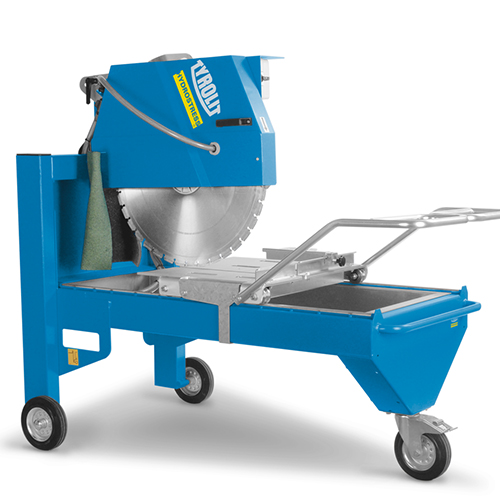

Tyrolit TME700 Masonry saw Cutting depth up to 270 mm 10989600
14,603
Concrete Table Saw
Masonry saw 10989600

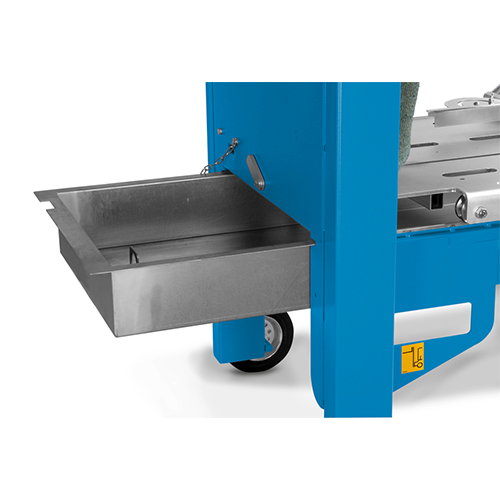

- Removable water tank for easier cleaning
- Sturdy, balanced transport hook for easy crane transport

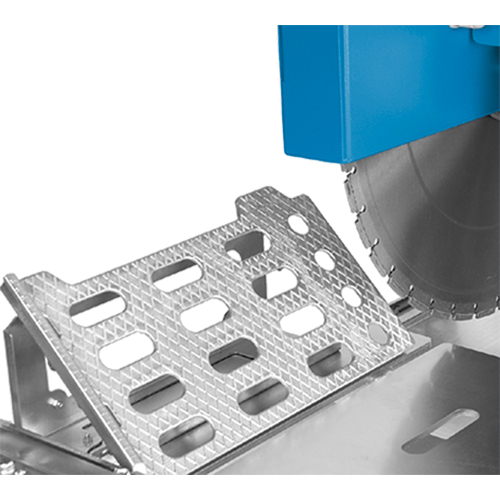

- Precise mitre cutting thanks to mitre stop
| Saw blade | |
|---|---|
| Max. cutting depth | 270 mm |
| Max. saw blade Ø | 700 mm |
| Cutting length | 600 mm |
| Saw blade speed | 1 380 rpm |
| Saw blade holder Ø | 60 mm |
| Carrier Ø | 11.5 mm |
| Reference circle Ø | 120 mm |
| Drive | |
| Drive | motor Electric |
| Output | 5.5 kW |
| Standard voltage | frequency 400 V / 50 Hz |
| Engine cooling | Air cooling |
| Saw blade drive | Direct |
| Design | |
| - Infinitely adjustable cutting depths | |
| - Angle cutting function (angle stop) | |
| - Mitre cutting function (swiveling saw head) | |
| - Transport hook and forklift guides | |
| - Pull-out water tank | |
| - Electric water pump | |
| Dimensions & Weight | |
| Length | 1 470 mm |
| Width | 910 mm |
| Height | 1 350 mm |
| Weight | 220 kg |
| Weight | 220 KG |
| Code | 06-75-091N |
| ID | 2225813 |
