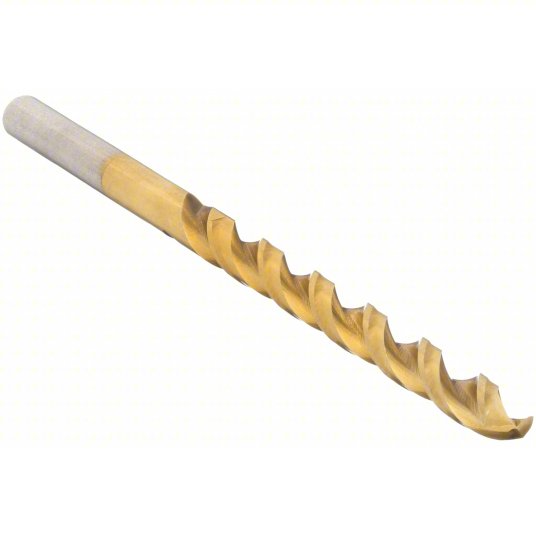

Westward Metal Drill Bit, 3 mm Drill Bit Size, 33mm Flute Length, 61mm Overall Length 6PRX9
11
15
Metal Drill Bit
Westward Metal Drill Bit 6PRX9
The TiN coating on these drill bits provides protection against wear and heat when drilling steel, stainless steel, and aluminum. The parabolic flute drill bits are designed with wide, deep flutes to improve chip flow and heat dissipation. As a result, the feed rates do not need to be reduced as the drills move deeper into the workpiece. These bits feature a straight shank for easy installation into a drill chuck or similar tool holder.
| Drill Bit Size | 3.00 mm |
|---|---|
| Decimal Equivalent | 0.1181 |
| Measurement System | Metric |
| Material - Machining | High Speed Steel |
| Finish - Machining | TiN |
| Drill Bit Point Angle | 135 ° |
| Drill Bit Point Type | Split Point |
| Coolant Fed | Non-Coolant Through |
| Number of Coolant Holes | 0 |
| Flute Type | Parabolic |
| Number of Flutes | 2 |
| Flute Length | 33.00mm |
| Helix Angle | 35° to 45° |
| Cutting Direction | Right Hand |
| Spiral Direction | Right Hand |
| Shank Type - Machining | Straight |
| Shank Length | 28.00 mm |
| Overall Length | 61.00mm |
| Depth:Dia. Ratio | 4xD |
| Drill Length Class | Jobber Length |
| Standards | DIN 338 |
| Aircraft Drill | No |
| Drill Diameter Tolerance | +0.0000 inch/-0.0005 inch |
| Sheeter Drill | No |
| Web Thinning | Thinned |
| Material Grade - Machining | High Performance |
| Primary Material Application | Aluminum and Non-Ferrous Material; Cast Iron; Steel |
| Primary Material Application ISO Code | K; N; P |
| Maximum Drilling Depth | 31/32 inch |
| Weight | 0.035 KG |
| ID | 1858476 |
