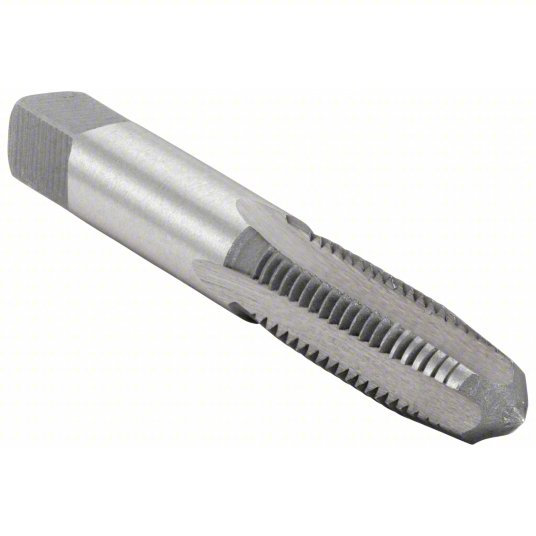

Westward Straight Flute Tap, 3/8 inch-16Thread Size, 1 1/4 inch Thread Length, 2 15/16 inch Overall Length 132210076
10
14
Straight Flute Tap
Split in 4 payments of 2.42
monthly without fees , learn more
Split it into 4 payments of 2.42
interest-free , learn more
Westward 132210076 Straight Flute Tap
A straight flute tap is a type of cutting tool used in threading applications. These taps have a bright finish that provides a smooth, polished surface. They are commonly used in applications where a straight, consistent thread is required and are typically used in materials like steel, aluminum, and brass.
| Thread Size | 3/8 inch-16 |
|---|---|
| Thread Standard | UNC |
| Tap Chamfer | Taper |
| Tap Material | Carbon Steel |
| Tap Finish | Bright (Uncoated) |
| Thread Length | 1-1/4 inch |
| Overall Length | 2-15/16 inch |
| Thread Direction | Right Hand |
| Number of Flutes | 4 |
| Coolant Fed | Non-Coolant Through |
| Drill Bit Size | 5/16 inch |
| Measurement System | Fractional Inch |
| Primary Material Application | All Materials |
| Shank Dia | 3/8 inch |
| Shank Type - Machining | Straight |
| Square Size | 0.2860 inch |
| Standards | ASME |
| Tap Style | Straight Flute |
| Threads per Inch | 16 |
| Weight | 0.036 KG |
| ID | 1931277 |
