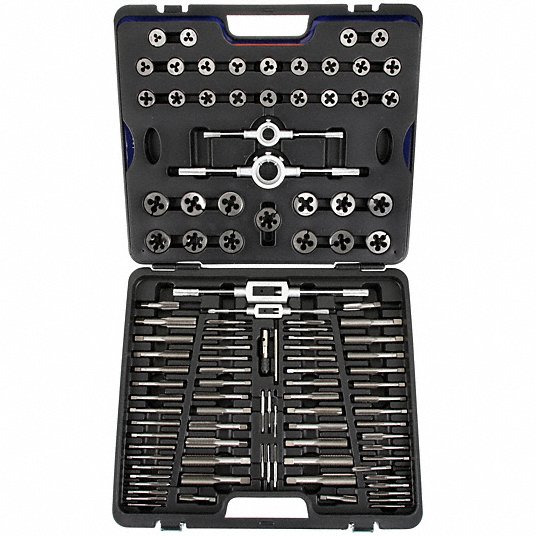

Westward Tap and Die Set, 110 Pieces, #4-40 Min, Tap Thread Size, M18 Max, Tap Thread Size 1PZ54
1,745
Tap and Die Set
Features:
- The taps and dies in these sets are made from carbon steel.
- They are an economical choice for internal- and external-threading applications in maintenance operations.
| Thread Sizes Included | #10-24, #10-32, #12-24, #4-40, #6-32, #8-32, 1/2 in-13, 1/2 in-20, 1/4 in-18, 1/4 in-20, 1/4 in-24, 1/4 in-28, 1/4 in-32, 1/8 in-27, 3/4 in-10, 3/4 in-16, 3/8 in-16, 3/8 in-24, 5/16 in-18, 5/16 in-24, 5/8 in-11, 5/8 in-18, 7/16 in-14, 7/16 in-20, 9/16 in-12, 9/16 in-18, M10x1.0, M10x1.5, M11x1.5, M12x1.5, M12x1.75, M14x1.25, M18x1.5, M6x1.0, M8x1.25 |
|---|---|
| Tap Finish | Bright (Uncoated) |
| Tap Shank Dia. | 0.14 in, 0.18 in, 0.20 in, 0.22 in, 0.24 in, 0.28 in, 0.31 in, 0.35 in, 0.41 in, 0.43 in, 0.47 in, 0.55 in |
| Class of Fit | 2A |
| Coolant Fed | Non-Coolant Through |
| Drill Bit Size | Metric, NPT |
| Extended Neck | No |
| Extended Shank | No |
| Extension Tap | No |
| Number of Flutes | 35 |
| Die Material | Carbon Steel |
| Die Finish | Bright (Uncoated) |
| Die Shape | Round |
| Die Type | Adjustable |
| Die Thread Sizes Included | #10-24, #10-32, #12-24, #4-40, #6-32, #8-32, 1/2"-13, 1/2"-20, 1/4"-18NPT, 1/4"-20, 1/4"-24, 1/4"-28, 1/4"-32, 1/8"-27 NPT, 3/4"-10, 3/4"-16, 3/8"-16, 3/8"-24, 5/16"-18, 5/16"-24, 5/8"-11, 5/8"-18, 7/16"-14, 7/16"-20, 9/16"-12, 9/16"-18, M10x1.0, M10x1.5, M11x1.5, M12x1.5, M12x1.75, M14x1.25, M18x1.5, M6x1.0, M8x1.25 |
| Case Type | Plastic Case |
| Primary Material Application | Ferrous Metal |
| Primary Material Application ISO Code | H |
| Dimensions Standard | ANSI B1.1 |
| Material - Machining | Carbon Steel |
| Max. Die Thread Size | 3/4"-16 |
| Max. Tap Thread Size | M18 |
| Measurement System | Fractional Inch |
| Min. Tap Thread Size | #4-40 |
| Spiral Direction | Right Hand |
| Tap Material Grade | GCr15 |
| Tap Sizes Included | #4 to 3/4 in, M6 to M18 |
| Standards | ANSI-B94-1987 Standards, American Metal Cutting Institute Standards for Cut Thread Tolerance |
| Tap Chamfer | Plug, Taper |
| Tap Material | Carbon Steel |
| Thread Direction | Right Hand |
| Thread Type | Metric, NPT, UNC, UNF |
| Weight | 7.7 KG |
| ID | 983930 |
