-30% Out of Stock Fluke Cable Fault Finder with Bridge Tap Detect TS100 PRO

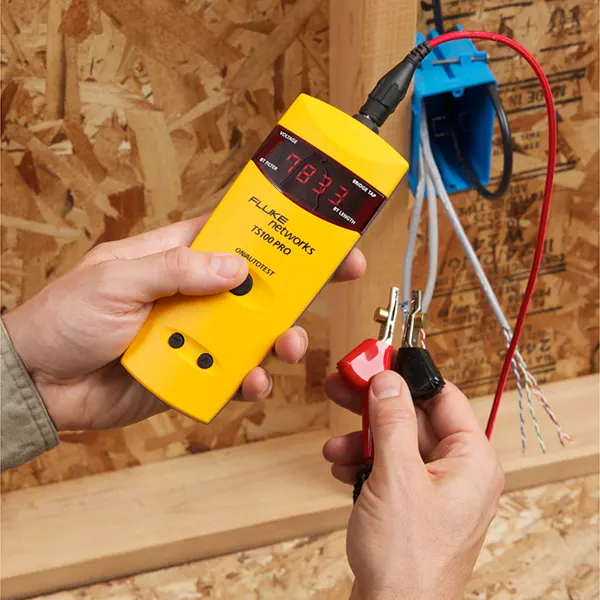

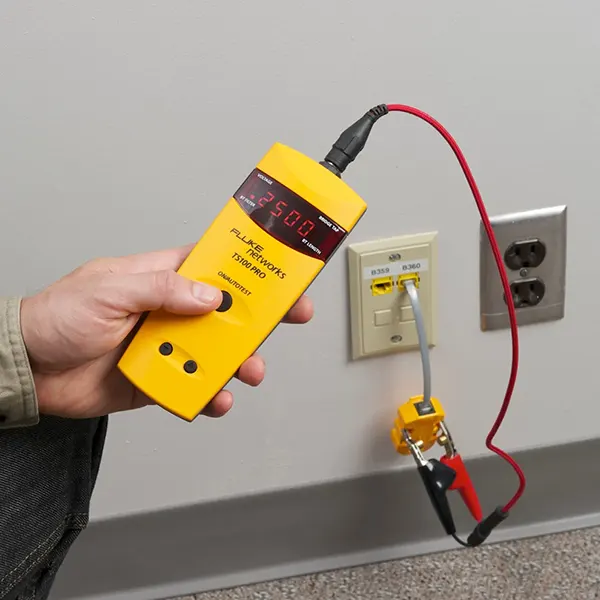

Fluke Cable Fault Finder with Bridge Tap Detect TS100 PRO

Name: Fluke Cable Fault Finder with Bridge Tap Detect TS100 PRO
Brand: Fluke
SKU: TS100 PRO
Price: 4749.03 SAR
Availability: OutOfStock

Weight: 1 KG

4,750

6,785

(vat inclusive)

Cable Fault Finder

Handheld and ruggedly built for the outdoor environment
Characterize your cable in seconds with the push of one button
No training is required for confusing graphs to interpret
Ideal for all levels of technician
Detects bridge taps (unauthorized connections) in telecom cables

Split in 4 payments of 1187.26 monthly without fees , learn more

Split it into 4 payments of 1187.26 interest-free , learn more

Quantity

Out of Stock

SKU TS100 PRO

Electrical Supplies

Download product Catalog

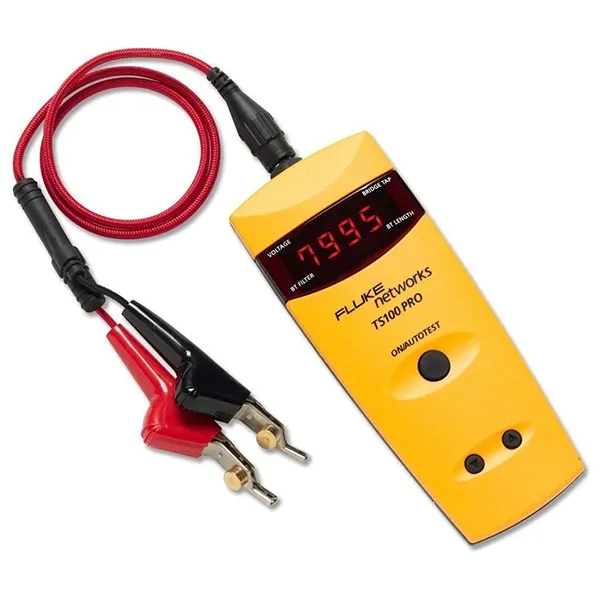

Fluke Cable Fault Finder TS100 PRO

The new TS^®100 PRO Cable Fault Finder with PowerBT™ Bridge Tap Detect not only provides open/short circuit detection—to 8,000 feet (2.4 kilometers)—but is also a telecom technician’s first line of defense against bridge taps. Because bridge taps are a significant source of DSL network performance problems, they need to be identified and fixed quickly before causing customer attrition. The TS100 PRO can accurately locate multiple bridge taps in seconds on up to 3,200 feet (975 meters) of cable with the touch of a button.

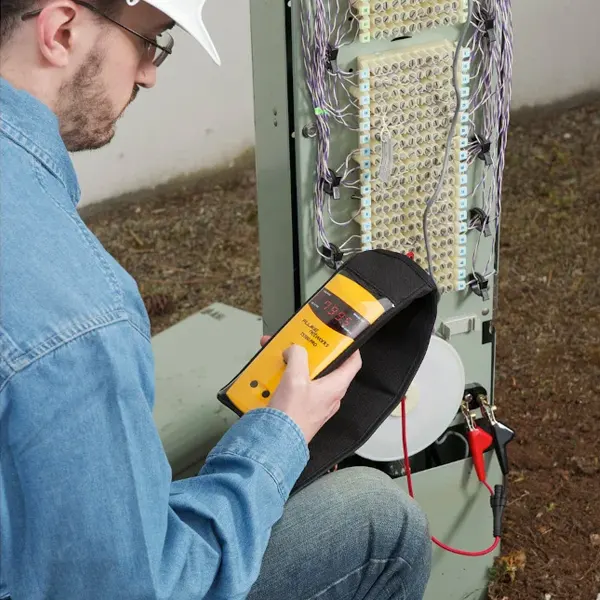

Used by telecommunications, triple-play/voice, data, and video professionals, the TS®100 PRO also gives users a built-in toner with five different tones and patented SmartTone®for exact pair identification and reports AC/DC voltage from just one end of any two conductor wires, telephone wires, security wires or coax cables. This five-in-one cable short circuit tester is so affordable every technician can have one.

Fluke Cable Fault Finder Features

Locates open and short circuits in cables.
Measures cable length.
Identifies individual wire pairs.
Suitable for troubleshooting and maintaining copper cabling in telecom, datacom, and other industries.
Long-distance tester – tests open and shorts up to 8,000 feet (2.4 kilometers)
Instantly measures the distance to open or any fault from one end of any cable pair
Improved DSL network performance
Five-in-one tool; bridge tap detector, open and short detector, voltage detector, SmartTone with five different tones.
No complicated setup or expertise is required.
No interpretation or analyses of complex graphs
Displays distance reading rather than waveform
Large bright LED screen
One button operation
High voltage detection
Moisture-proof

Application

Telecommunications Service Providers.
Cable Television Operators/MSOs.
Independent, Regional & Rural Telcos.
Network Technicians.
Contractors.
Network Installers.
Metropolitan Networks.

Maximum Length	8,000 feet (2,438 meters) on certain cable types, 4,000 feet (1,220 meters) on most cable types, and 500 feet (152 meters) on cables with high loss. The tester shows -Err if the cable is too long to be correctly measured.
Representative Maximum Cable Length	8,000 feet (2,438 meters): CAT-3 Twisted Pair
Representative Maximum Cable Length	8,000 feet (2,438 meters): CAT-5 Twisted Pair
Representative Maximum Cable Length	6,000 feet (1,830 meters): 12/2 AC Wire
Representative Maximum Cable Length	3,000 feet (900 meters): RG-6/U TV Coax
Representative Maximum Cable Length	1,500 feet (457 meters): RG-174/U Coax
Minimum Length	No minimum length (can read a bridge tap at 0 feet/meters).
Minimum Length	Minimum non-zero reading is 2 feet or 1 meter.
Length Accuracy	"±2 feet (±0.6 m) for cables less than 10 feet (3 m)
Length Accuracy	±5 feet (±2 m) for cables longer than 10 feet (3 m) and shorter than 200 feet (60 m)
Length Accuracy	+/-3%+/-5 feet (±2 m) for cables longer than 200 feet (60 m)"
Distance to Bridge Tap	0 feet to 3,200 feet (975 meters)
Minimum Length of Bridge Tap	10% of the distance to the bridge tap. Dependent on the cable characteristics.
Measurement Rate	Maximum of 4 complete measurements per second, decreasing to 2 seconds per measurement based on cable size and uniformity.
VOP	Adjustable from 20 to 99, saved in ﬂash memory.
Test Technology	Time Domain Reﬂectometry (TDR) with 100 Ω drive impedance, 6v maximum pulse height.
Cable Type	Virtually all two or more conductor cables.
Power	4 AA alkaline batteries.
Reverse Battery Protection	No damage to the tester will occur if the batteries are installed backwards.
Battery Life	35 hours (typical)
Low Battery Indication	LED display alternates between LO and bAtt when the battery voltage falls below 4.5v.
Maximum Output Voltage	4 voltage peak
Maximum Isolation Voltage	250 volts RMS
Voltage Measurements	Range: 0 volts AC to 115 volts AC; 0 volts DC to ±150 volts DC
Voltage Measurements	Accuracy: AC: +/-1%+/-2 volts (45 Hz to 65 Hz); DC: +/-1%+/-2 volts DC
High Voltage Detection	AC voltage detected to 115 volts; DC voltage detected to ±150 volts.
High Voltage Detection	AC voltage ≥90 volts or DC voltage ≥100 volts causes high voltage warnings to show on the display
SmartTone® (5-tones) Range	7,000 feet (2,134 meters)
Toner Range	52,800 feet (16,093 meters)
Tone Injection	Approximately 1 kHz at an amplitude of 80% of battery voltage. Variable frequency and cadence. Tone characteristics change as cable condition changes to “normal-open” from any other condition.
Impedance Range	35 Ω to 330 Ω with auto-compensation within this range. Cables with impedances outside this range will not be properly tested and may produce erratic or incorrect readings.
Temperature Range	Operating: 32°F to 104°F (0°C to 40°C)
Temperature Range	Storage: 32°F to 131°F (0°C to 55°C)
Humidity	Operating: 20% to 80% relative humidity
Humidity	Storage: 0% to 100% relative humidity
Operating Humidity	80% maximum at 86°F (30°C )
Operating Humidity	50% maximum at 104°F (40°C )
Operating Altitude	9,843 ft max (3,000 m max)
Weight	1 lb (454 grams)
Dimensions	7.4 in x 2.7 in x 1.4 in (18.8 cm x 6.9 cm x 3.6 cm)
Safety	IEC 61010-1:2010; N10140
Safety	EMC: IEC/EN61326-1:2006
Certifications and Compliance	Conforms to relevant European Union directives
Certifications and Compliance	Conforms to relevant Australian standards
Certifications and Compliance	IEC/EN61010-1 CAN/CSA-C22.2 No. 1010.1-92 + CSA-C22.2 No. 1010.1B-97, UL/ANSI 3111-1
