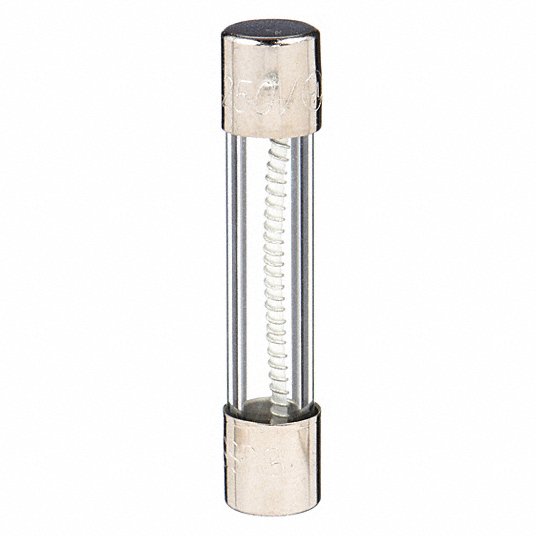

Fuse, Glass Fuse, Time Delay, 10 A, 1 1/4 in L x 1/4 inch dia Fuse Size, Pack of 5 MDL-10-R
38
54
Fuse
Split in 4 payments of 9.36
monthly without fees , learn more
Split it into 4 payments of 9.36
interest-free , learn more
Features
- This cartridge-style, time-delay glass fuses tolerate temporary inrush currents without opening, which prevents nuisance-blowing from equipment startups.
- Also called slow-blow glass fuses, they open to disconnect an electrical circuit when exposed to sustained loads and short circuits.
- Glass fuses provide overcurrent protection for low-current circuits in appliances, electronics circuit boards, and lighting fixtures.
- They typically have a voltage rating of 300VAC or less and are used for applications where they won't be exposed to high heat that could shatter the glass.
- Their small, cylindrical body is see-through for checking whether the fuse wire is intact or has melted.
| Amps | 10A |
|---|---|
| AC Voltage Rating | 32V AC |
| DC Voltage Rating | Not Rated |
| Series | MDL |
| Visual Indication | Glass Fuse |
| Speed | Time Delay |
| Body Style | Cylindrical |
| Fits Fuse Block Style | Nonrejection |
| Interrupt Rating | 1kA at 32V AC |
| Fuse Size | 1-1/4 in L x 1/4 in dia |
| Length | 1 1/4 in |
| Diameter | 1/4 in |
| Equivalent Brand and Series | Bussmann MDL, Bussmann MDQ, Bussmann MDV, Bussmann MDX, Littelfuse 313, Littelfuse 315, Mersen GDL, Mersen GDV |
| Equivalent Series | 313, 315, GDL, GDV, MDL, MDQ, MDV, MDX |
| Body Material | Glass |
| Compatible Fuse Block Series | 3823, HFA, HHN, HK, HKP, HPF, HRK, HTB, S-8000 |
| Element | Single |
| Standards | CE, CSA Certification Class 1422-30, UL Recognized Guide JDYX2 |
| Weight | 0.004 KG |
| ID | 1160926 |
