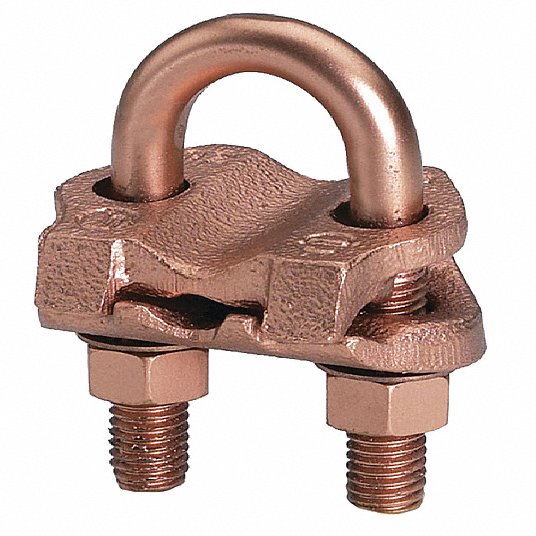

Burndy Grounding Connector, 5 to 2/0 AWG STR/4 to 3/0 AWG SOL Grounding Wire Size, Copper, Mechanical GAR1426
166
237
Grounding Connector
Split in 4 payments of 41.42
monthly without fees , learn more
Split it into 4 payments of 41.42
interest-free , learn more
The pipe ground clamp is a mechanical grounding connector for cable to rod or pipe.
- Rated for direct burial.
| Grounding Wire Size | 4 to 3/0 AWG SOL, 5 to 2/0 AWG STR |
|---|---|
| Material | Copper, Copper |
| Number of Wires - Grounding | 1 |
| Description | Special Features / Direct Burial, Rebar #7-#8 |
| For Maximum Ground Conductor Wire Size | 2/0 AWG STR |
| For Minimum Ground Conductor Wire Size | 4 AWG SOL |
| For Use With | Copper Conductors, Ground Rods, Pipes, Rebar |
| Grounding Wires Connected To | #7 to #8 Rebar, 1/2 in to 3/4 in Pipe, 7/8 in to 1 in Rod |
| Standards | UL Listed Direct Burial, UL467 |
| Type - Grounding Connector | Mechanical |
| Accessory Type | Grounding Connector |
| For Maximum Pipe Size | 3/4 in |
| For Minimum Pipe Size | 1/2 in |
| For Rod Dia. | 7/8 in to 1 in |
| Overall Height | 3 in |
| Overall Length | 1 9/16 in |
| Overall Width | 2 3/8 in |
| Package Quantity | 1 |
| Torque | 240 in-lb |
| Weight | 0.2948348 KG |
| ID | 1214833 |
