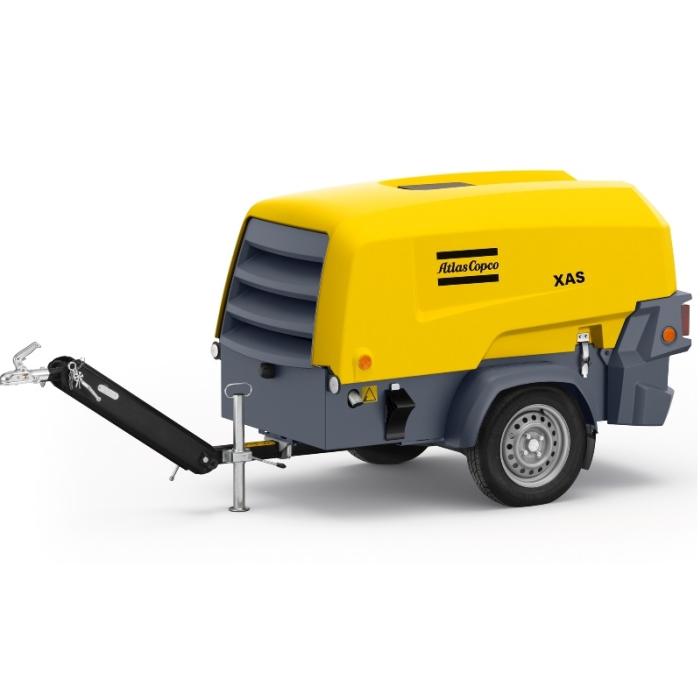

Atlas Copco Diesel Portable Compressor 7 bar, 135 CFM XAS 68
54,335
Diesel Portable Compressor
Atlas Copco’s fully implemented Quality Management and Environmental Management systems in the design and manufacturing of these units fulfill the requirements of ISO 9001 and ISO 14001 & OHSAS 18001.
The range has also been given the certificate tested according to ISO 1217:2009-annex D.
OPTIONS
- Adjustable tow bar with brakes
- Adjustable tow bar without brakes
- Fixed tow bar with brakes
- Fixed tow bar without brakes
- DoT approved undercarriage
- Support mounted
- Support leg
- Jockey wheel
- Road signalization + wheel chocks
- Towing eye (DIN, NATO, AC, BNA, ITA ,GB , Ball coupling)
- Loose ball coupling
- Special colors
- Cold start
- Toolbox
- Aftercooler + water separator
- Aftercooler + water separator + heater
- Aftercooler by-pass
- Additional fuel filter
- Safety cartridge
- Lubricator
- Non-return valve
- Tilt protection
- Air filter vacuum system
- Hose reel
- 4th O/L valve (simple attachment)
| Performance | |
|---|---|
| Working pressure bar (g) | 7 |
| psi (g) | 100 |
| Free air delivery CFM | 135 |
| m3 | min / 3,5 |
| Output power kVA | - |
| Noise sound pressure level (Lp) | 70 |
| Noise sound power level (Lw) | 98 |
| Max. ambient temperature at sea level °C | 50 |
| Min. starting temperature °C | -10 |
| Min. starting temperature (cold start aid) | -20 |
| Engine | |
| Engine brand | Kubota |
| Engine model | V 1505 T |
| Number of cylinders | 4 |
| Power output @ normal shaft speed kW | 26,5 |
| Full load RPM rpm | 3000 |
| Unload RPM rpm | 1850 |
| Engine oil capacity l | 5,5 |
| Compressor oil capacity l | 7,7 |
| Fuel tank capacity | 60 |
| Length mm | 1940 |
| Width mm | 1180 |
| Height mm | 1150 |
| Weight box | 650 |
| Transport dimensions | |
| Length mm | 2290 |
| Width mm | 1350 |
| Height mm | 1400 |
| Weight portable kg | < 750 |
| Weight | 750 KG |
| ID | 2583955 |
