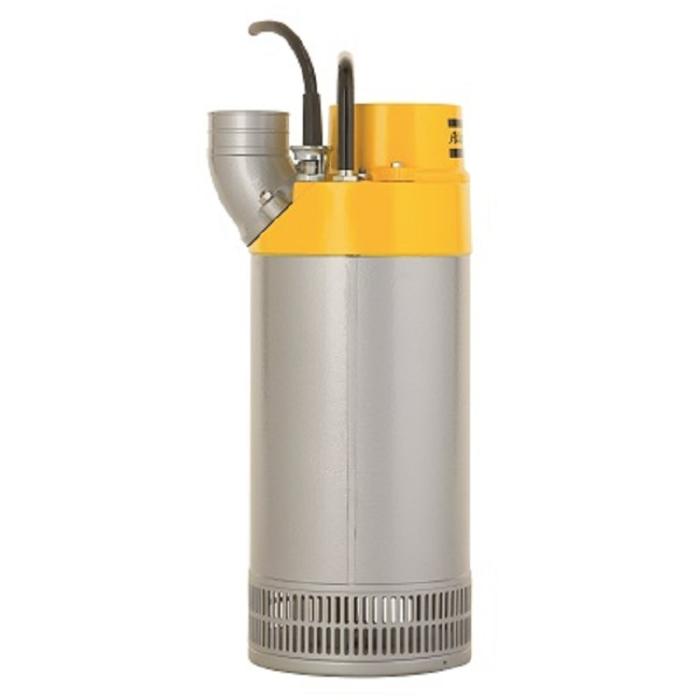

Atlas Copco Submersible pump, 163 m3/hour, 29m head, 4 inch, 11.5 HP, 3 phase WEDA 60N
13,460
Submersible pump
The WEDA drainage pumps handle either clean or dirty water, even with small solids with the best performance and efficiency.
- HIGH CORROSION RESISTANCE Unique aluminum alloy offers the perfect combination of strength, light weight and corrosion resistance
- FLEXIBILITY Discharges can be mounted vertically or sideways as required
- MOTOR PROTECTION Class F motors, with thermal switches in each winding
- IMPROVED CABLE SEALING Ensures protection against water leakage from cable entry
- EXTENDED PERFORMANCE Pump design ensures all-round motor cooling for better performance
- MODULAR SEALING SOLUTION Based on pump size, the sealing system is adapted to provide the best solution
- IMPROVED WEAR RESISTANCE High-chrome (55HRC) impellers provide higher wear resistance
| Max. head ft | 100 |
|---|---|
| Max. flow | US gpm / 700 |
| m3/h / 156 | |
| Rated output hp | 11.5 |
| Max. power input kW | 10.0 |
| Discharge connection in | 4” (3”) |
| Max solid handling size in | 0.32" |
| Weight and dimensions | |
| Weight lbs | 134 |
| Height in | 29.9" |
| Width in | 13.0" |
| Diameter | 10.9" |
| Weight | 60.78 KG |
| ID | 2583997 |
