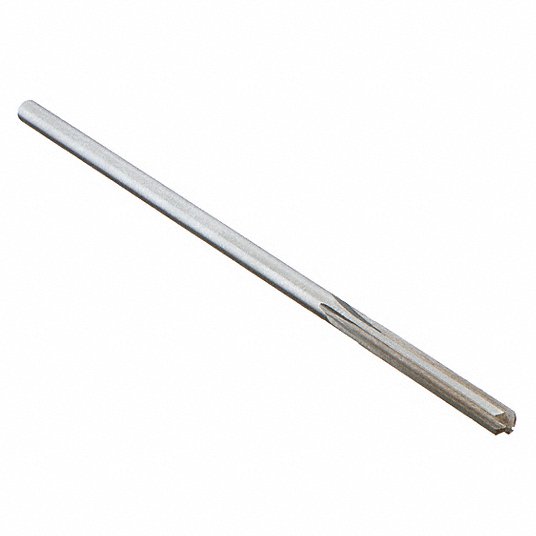

Grainger Approved Chucking Reamer, High Speed Steel, Bright (Uncoated), Straight, Wire, #35 13H669
47
67
Chucking Reamer
Split in 4 payments of 11.58
monthly without fees , learn more
Split it into 4 payments of 11.58
interest-free , learn more
Features
- Wire-size high-speed steel chucking reamers come in standard sizes that correspond to American Wire Gauge (AWG) sizes.
- This ensure compatibility when inserting a wire of the same wire size into the hole created by the tool.
- The larger the wire size, the smaller the reamer.
- Straight-flute reamers push chips forward into a hole as they enlarge it to an exact size for a precise fit when installing fasteners or other parts.
- They are the most commonly used style of reamer.
- These chucking reamers are made from high-speed steel and have a bright finish that is unaffected when their cutting edges are resharpened.
- The reamers' straight shank mounts to the chuck of a drill press or similar machining tool.
| Measurement System | Wire |
|---|---|
| Reamer Size | #35 |
| Decimal Equivalent | 0.1100 |
| Shank Type - Machining | Straight |
| Shank Dia. | 7/64 in |
| Flute Type | Straight |
| Number of Flutes | 4 |
| Flute Length | 7/8 in |
| Spiral Direction | Neutral |
| Coolant Fed | Non-Coolant Through |
| Overall Length | 3 1/2 in |
| Material - Machining | High Speed Steel |
| Finish - Machining | Bright (Uncoated) |
| Cutting Direction - Machining | Right Hand |
| Chamfer Angle | 45 Degrees |
| Primary Material Application | Steel |
| Secondary Material Application | Steel |
| Reamer Application | Through Hole |
| Size - Decimal | #35 - 0.1100 |
| Weight | 0.004 KG |
| ID | 1550859 |
