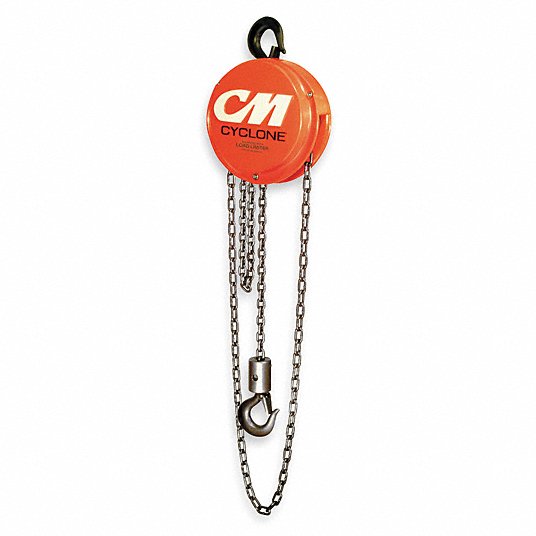

Cm Cyclone Manual Chain Hoist, 4000 lb Load Capacity, 10 ft Hoist Lift, 1 5/16 in Hook Opening 4626
4,186
5,980
Chain Hoist
Split in 4 payments of 1046.50
monthly without fees , learn more
Split it into 4 payments of 1046.50
interest-free , learn more
CM Cyclone , Combines superior engineering efficiency and durability
4000 lb ( 1800 kg ) Manual Chain Hoist
The CM Cyclone Hand Chain Hoist features superior engineering, efficiency and durability and is considered one of the most popular and reliable hand chain hoists ever designed. It also boasts the most interchangeability of parts in the industry. Furthermore, each Cyclone hoist is inspected over 75 times to meet or exceed HMI and ASME / ANSI performance and safety standards.
Features :
- Standard Load Limiter for simple, automatic overload protection
- Enclosed contoured Weston-type automatic brake for positive load control
- High-efficiency spur gearing for greater lift with minimum effort
- Rugged Hoistaloy chain for added strength and durability
- Fully machined, forged liftwheel pockets for easier lifting and smooth free chaining
- High-strength aluminum alloy castings in frame and covers
- Standard hand chain drop is 2 feet less than lift (example: 8 ft lift hoist has 6 ft hand chain drop)
- Metric rated
| Load Capacity | 4000 lb |
|---|---|
| Hoist Lift | 10 ft |
| Min. Between Hooks | 17 5/16 in |
| Pull to Lift Rated Load | 83 lb |
| Hook Opening | 1 5/16 in |
| Housing Length | 10 1/8 in |
| Housing Width | 10 7/8 in |
| Housing Depth | 9 7/8 in |
| Brake | Weston Style Brake |
| Standards | HMI and ANSI/ASME B30.16 |
| Includes | Safety Latch Hooks |
| Hoist Mount | Hook Mounted - No Trolley |
| Weight | 32 KG |
| ID | 1001306 |
