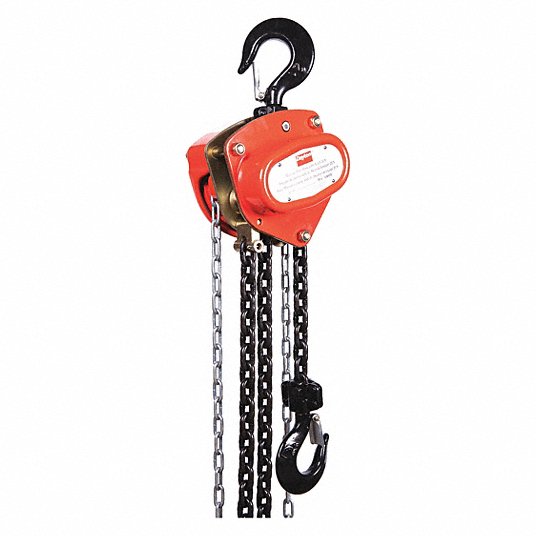

Dayton Manual Chain Hoist, 4,000 lb Load Capacity, 20 ft Hoist Lift, 1 17/64 in Hook Opening 1VW60
1,247
1,781
Chain Hoist
Split in 4 payments of 311.60
monthly without fees , learn more
Split it into 4 payments of 311.60
interest-free , learn more
This manually operated chain hoist features a through-hardened load chain, along with lubricated roller bearings and bushings, bearing-mounted pinions, and heat-treated spur gearing.
- The hand chain hangs 2 ft. shorter than the lift.
- Safety latch hooks help provide a safe means for lifting freely-suspended material loads.
- Latch hooks help to keep loads from slipping off the hooks.
Load tested to 125 percent of rated load. Through-hardened load chain. Lubricated roller bearings and bushings, bearing-mounted pinions, and heat-treated spur gearing. Hand chain hangs 2 ft. shorter than lift. Meet ANSI/ASME B30.16 standards.
| Load Capacity | 4,000 lb |
|---|---|
| Hoist Lift | 20 ft |
| Min. Between Hooks | 17 1/8 in |
| Pull to Lift Rated Load | 86 lb |
| Hook Opening | 1 17/64 in |
| Housing Length | 7 13/32 in |
| Housing Width | 7 9/32 in |
| Housing Depth | 6 3/16 in |
| Brake | Double Disc Brake, Weston Style |
| Standards | ANSI/ASME B30.16, EN13157 |
| Includes | Safety Latch Hooks |
| Hoist Mount | Hook Mounted - No Trolley |
| Weight | 25 KG |
| ID | 1931336 |
