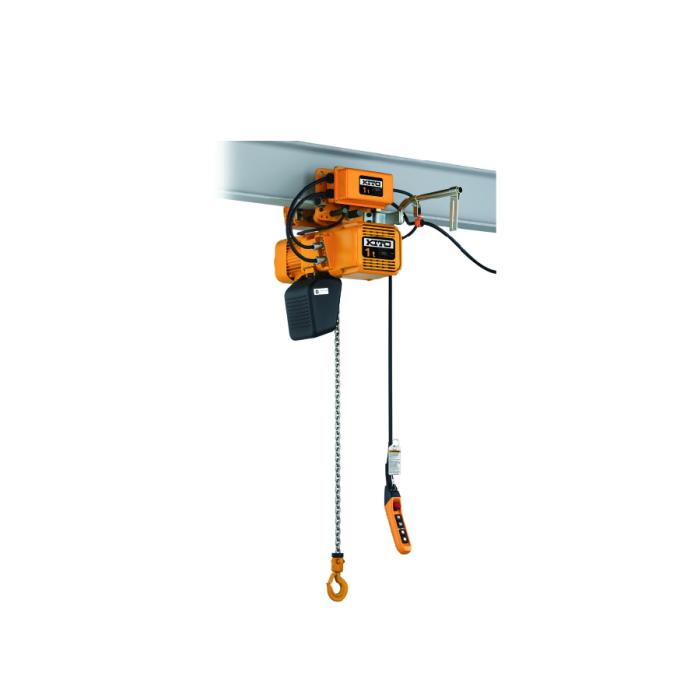

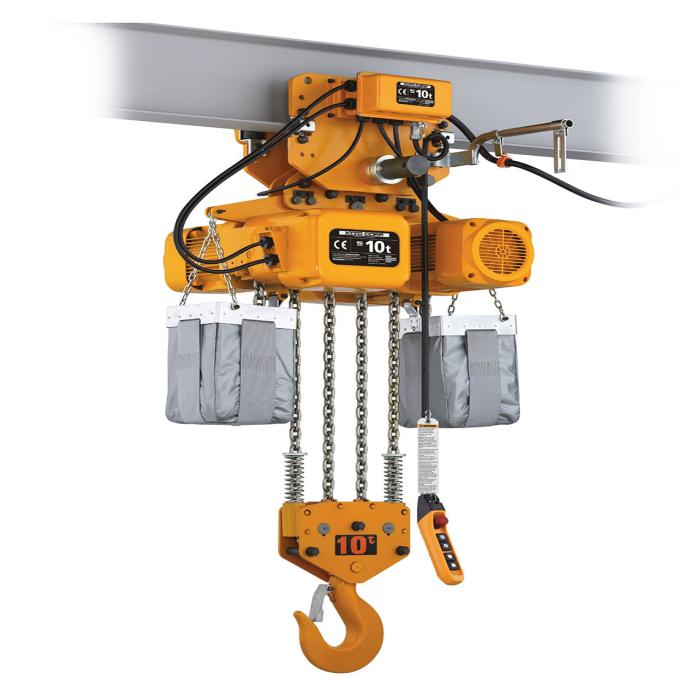

Kito ELECTRIC CHAIN HOIST, MOTORIZED TROLLEY, TYPE 220VOLTS 60HZ 7.5 TON WITH CHAIN, FOR 3 METERS LIFTING HEIGHT AND CHAIN BUCKETER2M075S-LV ER2M075S-L/220V
33,402
LECTRIC CHAIN HOIST
Features
- CHAIN HOIST from KITO, TROLLY, with Large Capacity, Motorized Trolley 7.5 TON, 220V.
- Ten meters of power supply cable as standard accompanies.
- Optional length of lift, push button cord and power supply cable besides standard is available on your request.
- Extending the load chain is prohibited with additional links.
- Steel chain containers are available as option as shown in Section of “Chain Containers”” if your lift is more than capacity of the standard container volume.
| Capacity(t) | 7.5 |
|---|---|
| Hoist Body | F |
| Standard Lift (m) | 3 |
| Push Button Cord L (m) | 3.3 |
| Lifting Motor | Output (kW) / 3.5 |
| Lifting Motor | Rating (%ED) / 60 |
| Lifting Speed (m | min) / 50Hz: 1.9 / 60Hz: 2.3 |
| Load Chain | Diameter (mm) x Chain Falls / 11.2 x 3 |
| Classification ISO | FEM/ASME: M4/1Am/H4 |
| Traversing Motor | Output (kW) / 0.75 |
| Traversing Motor | Rating (%ED) / 40 |
| Traversing Speed (m | min) / 50Hz: 10 / 60Hz : 12 |
| Flange Width B (mm) | Standard / 150 to 220 |
| Flange Width B (mm) | Option W30 (305mm) / 221 to 305 |
| Min.Radius Curve (mm) | 2500 |
| Test Load (t) | 9.4 |
| Net Weight (kg) | 283 |
| Additional Weight per 1m Lift (kg) | 8.4 |
| Weight | 283 KG |
| ID | 2180486 |
