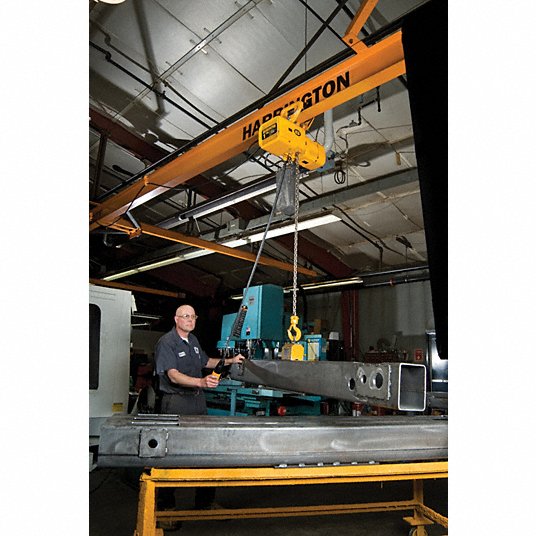

Harrington H4 Electric NER Chain Hoist, 2,000 lb. Load Capacity, 230V, 20 ft. Hoist Lift, Lift Speed 28/4.5 fpm, 2 Speed NER010SD-20
13,919
19,884
Electric Chain Hoist
Features
- Electromagnetic brake Grade 80 nickel-plated steel chain Meet ASME B30.16
- Designed to handle heavy- and severe-duty applications.
- The variable-speed duty cycle is 30/10 min. with under-the-cover variable frequency drive with 2-step infinitely variable control and speed ratio of 6:1, adjustable up to 12:1.
- Include smart brake technology.
- H4 Rated Die-cast aluminum Friction clutch Oil bath lubrication Include chain container
| Electric Hoist Item | Chain Hoist |
|---|---|
| Load Capacity | 2,000 lb |
| Hoist Lift | 20 ft |
| Classification | H4 |
| Number of Speeds | 2 |
| Lift Speed | 28/4.5 fpm |
| Motor HP | 2.4 hp |
| Voltage | 230 |
| Phase | 3 |
| Min. Between Hooks | 16 15/16 in |
| Amps @ Low Volts | 9.1 A |
| Housing Depth | 8 5/16 in |
| Housing Length | 24 1/2 in |
| Housing Width | 9 11/16 in |
| Reeving | 1 |
| Brake | DC Current |
| Clutch | Friction |
| Control | 110V Push Button Control Pendant |
| Control Cord | 16 ft |
| Color | Yellow |
| Finish | Electrostatic Enamel |
| Hz | 60 |
| Lubrication | Oil Bath |
| Thermal Protection | Yes |
| Standards | ASME B30.16, ASME HST-1M, NFPA 70, RoHS, UL1340 |
| Includes | Chain Container, Quick Disconnect Plugs On Pendant and Power Cord |
| Hoist Mount | Hook Mounted - No Trolley |
| Weight | 58.05 KG |
| ID | 980756 |
