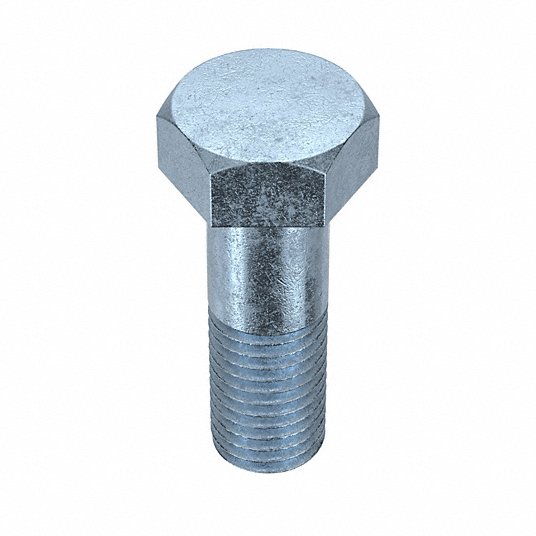

Fabory Hex Head Cap Screw, 3/4"-10 U01200.075.0225
20
29
Hex Head Cap Screw
Split in 4 payments of 4.92
monthly without fees , learn more
Split it into 4 payments of 4.92
interest-free , learn more
With Grade 5 steel construction, these hex head cap screws offer strength and moderate flexibility. - The thick, hexagonal head design is engineered for tightening with a wrench. - Use in pretapped holes or with nuts. Grade 5 steel is hardened, yet more malleable than Grade 8, allowing the screws to withstand shear force.
| System of Measurement | Inch |
|---|---|
| Cap Screw Type | Hex Head Cap Screw |
| Basic Material | Steel |
| Material Grade | Grade 5 |
| Fastener Finish | Zinc Plated |
| Dia. | Thread Size / 3/4"-10 |
| Fastener Length | 2 1/4 in |
| Fastener Thread Direction | Right Hand |
| Fastener Thread Type | UNC (Coarse) |
| Fastener Thread Style | Fully Threaded |
| Fastener Industry Standards | ASME B18.2.1 |
| Head Type | Hex |
| Min. Thread Length | 1 3/4 in |
| Head Height | 15/32 in |
| Head Width | 1.125 in |
| Temp. Range | -58 Degrees to 302 Degrees F |
| Proof Load | 74,000 to 85,000 psi |
| Tensile Strength | 105,000 to 120,000 psi |
| Rockwell Hardness | C19 to C30 |
| Weight | 0.86 KG |
| ID | 1915000 |
