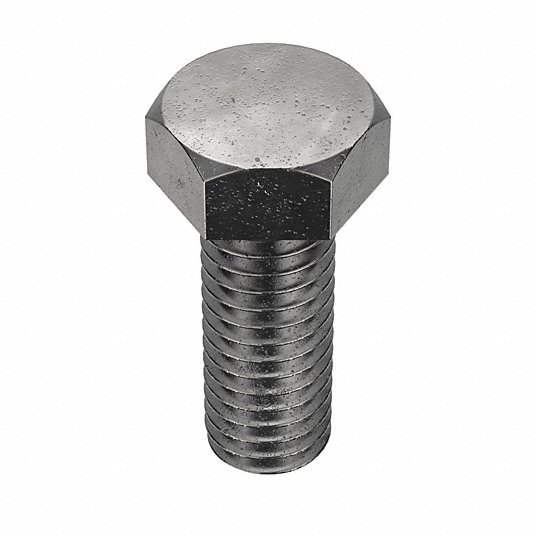

Grainger Approved Hex Head Cap Screw, 3/8Inch-16 HXCS.001719.50
59
84
Hex Head Cap Screw
These screws are manufactured with alloy steel, which contains elements to help the screws become more responsive to heat and mechanical treatments.
| System of Measurement | Inch |
|---|---|
| Cap Screw Type | Hex Head Cap Screw |
| Basic Material | Steel |
| Material Grade | B7 |
| Fastener Finish | Plain |
| Dia. | Thread Size / 3/8"-16 |
| Fastener Length | 1 in |
| Fastener Thread Direction | Right Hand |
| Fastener Thread Type | UNC (Coarse) |
| Fastener Thread Style | Partially Threaded |
| Fastener Industry Standards | ASME B18.2.1 |
| Head Type | Hex |
| Min. Thread Length | 1 in |
| Head Height | 15/64 in |
| Head Width | 9/16 in |
| Tensile Strength | 125,000 psi |
| Rockwell Hardness | C35 |
| Weight | 1 KG |
| ID | 1093728 |
