Kito 2.5 TON LEVER HOIST, Made In Japan LB025
1,805
LEVER HOIST
Split in 4 payments of 451.09
monthly without fees , learn more
Split it into 4 payments of 451.09
interest-free , learn more
Features

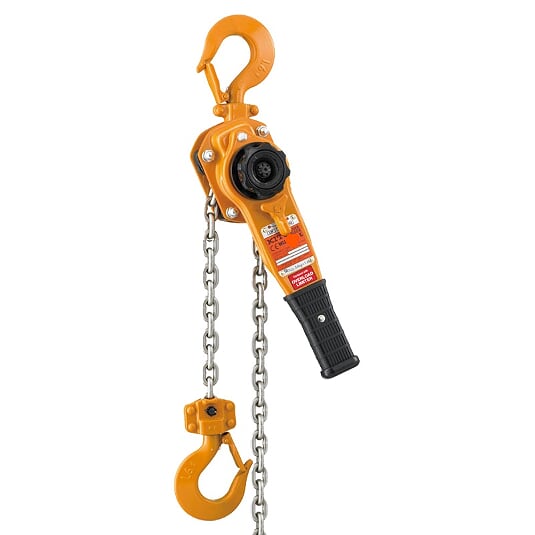

- LEVER HOIST from KITO, 2.5TON X 1.5MTR.
- Smaller and lighter easy to carry and store, much easier to use, even in a narrow working spaces.
- Nickel-plated chain, produces world-class performance, toughness and resistance to corrosion & wear.
- High-strength frame High grade alloy steel with solid construction.
- Lever Handle with A new shape and thicker material creates a very strong lever handle.
- Hook Latch with safety mechanism with Thicker material makes the latch stronger, and engagement with the tip of the hook creates secure closure.
- Hooks are forged from high strength alloy steel allowing the larger capacities.
- 21/2 through 9 ton – to use hooks that are smaller and lighter.
- Cap Nuts fasten the gear case and brake cover protecting the screw from damage and making maintenance easier.
| Rated load (W.L.L.) | 2.5 |
|---|---|
| Standard lift (m) | 1.5 |
| Hand-pull to lift full load (n) (kg) | 363 (37) |
| Load chain diameter x chain fall (mm) | 8.8x1 |
| Test load (kg) | 3800 |
| Mass (Net weight) * (kg) | 11.2 |
| Shipping weight (Approx.)(kg) | 11.6 |
| Weight for additional one meter of lift (kg) | 1.7 |
| Dimensions (mm) | A / 173 |
| Dimensions (mm) | B / 150 |
| Dimensions (mm) | C / 375 |
| Dimensions (mm) | D / 265 |
| Dimensions (mm) | E / 102 |
| Dimensions (mm) | G / 36.5 |
| Dimensions (mm) | S / 47 |
| Dimensions (mm) | T / 21 |
| Weight | 12 KG |
| Code | 40-05-009 |
| ID | 2179359 |
