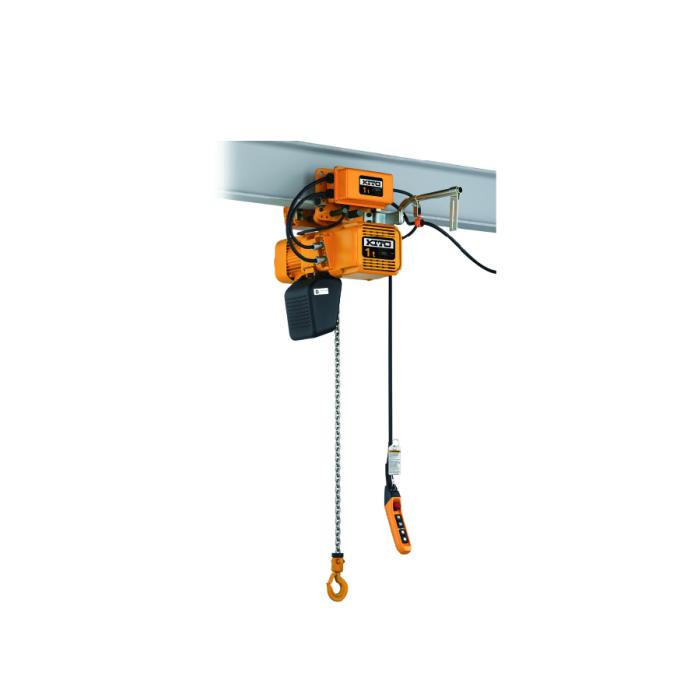

Kito CHAIN HOIST 2 TON 4 WAYS 380 V, ER2M020S-S, Made In Japan ER2M020S-S/380V
12,765
Chain hoist
CHAIN HOIST, Single Lifting - Single Traversing Speed from KITO With Motorized Trolley, 380V
- Ten meters of power supply cable as standard accompanies
- Optional length of lift, push button cord and power supply cable besides standard is available on your request
- Extending the load chain is prohibited with additional links
- Steel chain containers are available as option as shown in Section of "Chain Containers" if your lift is more than capacity of the standard container volume
- Single Lifting - Dual Traversing is also available
| Capacity(t) | 2 |
|---|---|
| Hoist Body | E |
| Standard Lift (m) | 3 |
| Push Button Cord L (m) | 2.5 |
| Lifting Motor | |
| Output (kW) | 3.5 |
| Rating (%ED) | 60 |
| Lifting Speed (m | min) / 50Hz:7.0 / 60Hz: 8.4 |
| Load Chain: Diameter (mm) x Chain Falls | 10.2 x 1 |
| Classification ISO | FEM/ASME: M4/1Am/H4 |
| Traversing Motor | |
| Output (kW) | 0.4 |
| Rating (%ED) | 40 |
| Traversing Speed (m | min) / 50Hz: 20 (10) / 60Hz :24 (12) |
| Flange Width B (mm) | |
| Standard | 82 to 178 |
| Option W30 (305mm) | 179 to 305 |
| Min.Radius Curve (mm) | 800 |
| Test Load (t) | 2.5 |
| Net Weight (kg) | 129 |
| Additional Weight per 1m Lift (kg) | 2.3 |
| Weight | 129 KG |
| ID | 2209802 |
