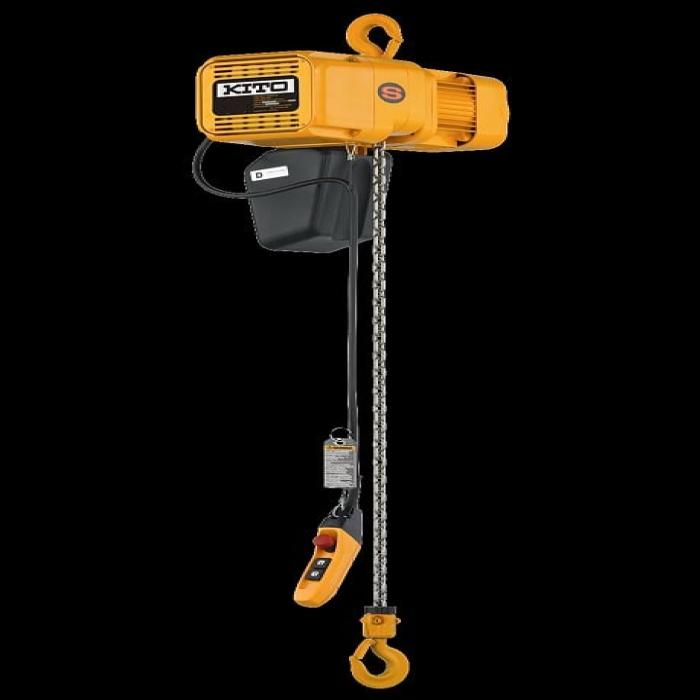

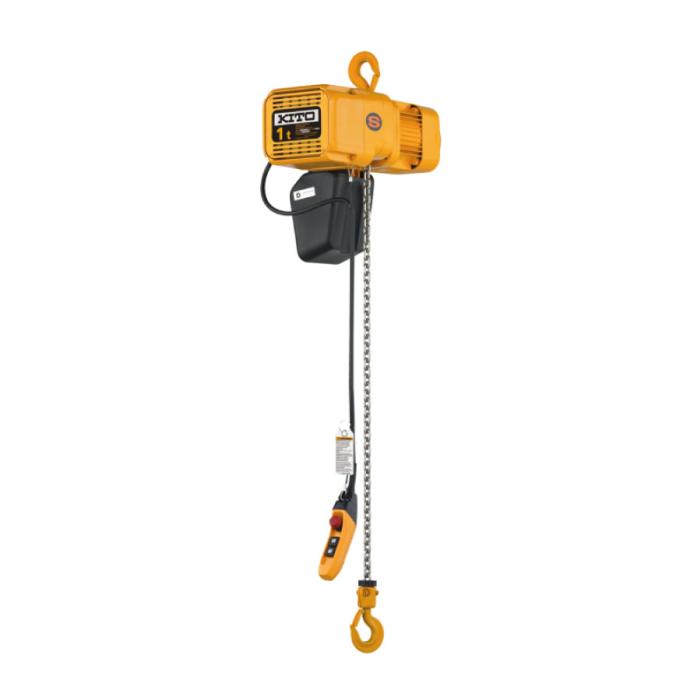

Kito CHAIN HOIST 3 TON 2 WAYS 380 V, ER2-030S, Made In Japan ER2-030S/380V
14,570
Chain hoist
Features
- CHAIN HOIST from KITO, 3 TON, 380V,3PH
- Five meters of power supply cable as standard accompanies
- Optional length of lift, push button cord and power supply cable besides standard is available on your request
- Extending the load chain is prohibited with additional links
- Steel chain containers are available as option as shown in Section of "Chain Containers" if your lift is more than capacity of the standard container volume
| Capacity(t) | 3 |
|---|---|
| Hoist Body | E |
| Standard Lift (m) | 3 |
| Push Button Cord L (m) | 2.8 |
| Lifting Motor | Output (kW) / 3.5 |
| Lifting Motor | Rating (%ED) / 60 |
| Lifting Speed (m | min) / 50Hz / 4.4 / 60Hz: 5.3 |
| Load Chain | Diameter (mm) x Chain Falls / 10.2 x 2 |
| Classification ISO | FEM/ASME / M4/1Am/H4 |
| Test Load (t) | 3.75 |
| Net Weight (kg) | 107 |
| Additional Weight per 1m Lift (kg) | 4.7 |
| Weight | 107 KG |
| Code | 40-01-070 |
| ID | 2211944 |
