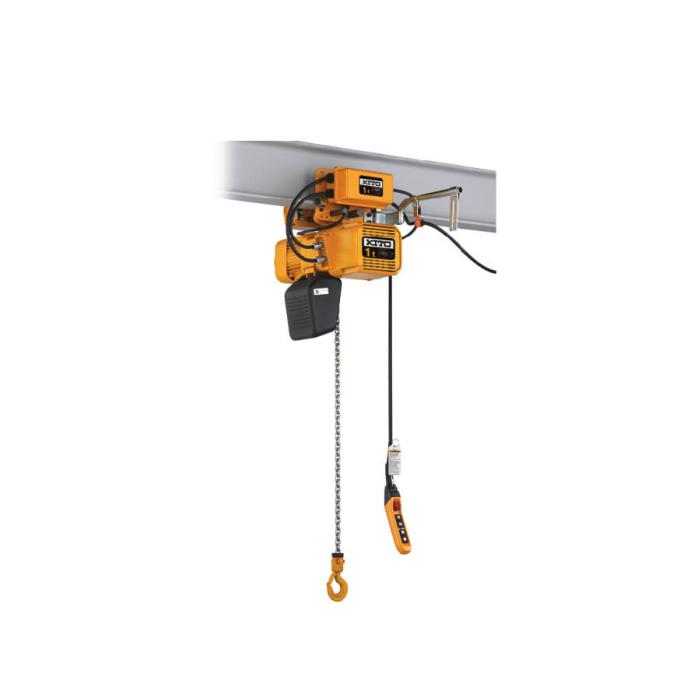

Kito CHAIN HOIST 5TON 4 WAYS 380 V, ER2M050S-S, Made In Japan ER2M050S-S/380V
22,093
Chain hoist
Features
- CHAIN HOIST, Single Lifting - Single Traversing Speed from KITO With Motorized Trolley, 380V
- Ten meters of power supply cable as standard accompanies
- Optional length of lift, push button cord and power supply cable besides standard is available on your request
- Extending the load chain is prohibited with additional links
- Steel chain containers are available as option as shown in Section of "Chain Containers" if your lift is more than capacity of the standard container volume
- Single Lifting - Dual Traversing is also available
| Capacity(t) | 5 |
|---|---|
| Hoist Body | E |
| Standard Lift (m) | 3 |
| Push Button Cord L (m) | 2.8 |
| Lifting Motor | Output (kW) / 3.5 |
| Lifting Motor | Rating (%ED) / 60 |
| Lifting Speed (m | min) / 50Hz: 2.9 / 60Hz: 3.5 |
| Load Chain: Diameter (mm) x Chain Falls | 11.2 x 2 |
| Classification ISO | FEM/ASME: M4/1Am/H4 |
| Traversing Motor | Output (kW) / 0.75 |
| Traversing Motor | Rating (%ED) / 40 |
| Traversing Speed (m | min) / 50Hz: 20 (10) / 60Hz :24 (12) |
| Flange Width B (mm) | Standard / 100 to 178 |
| Flange Width B (mm) | Option W30 (305mm) / 179 to 305 |
| Min.Radius Curve (mm) | 1800 |
| Test Load (t) | 6.25 |
| Net Weight (kg) | 202 |
| Additional Weight per 1m Lift (kg) | 5.6 |
| Weight | 202 KG |
| ID | 2211546 |
