Leo Centrifugal Water Pump, 0.8HP, 60Hz, Dual Voltage 240-220V, Head 27m, Inlet x Outlet 1 x 1 inch, 11.3kg Clearance offer without warranty. Spare parts are discontinued ACM60-PB

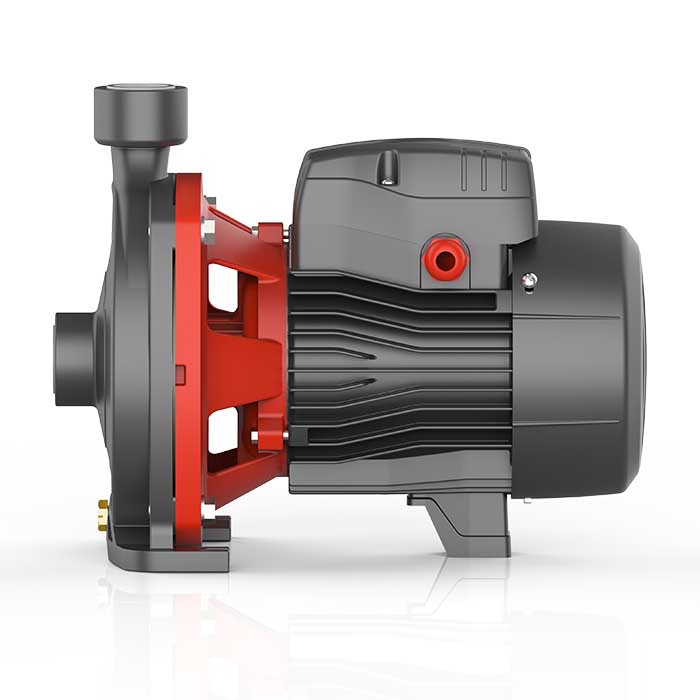

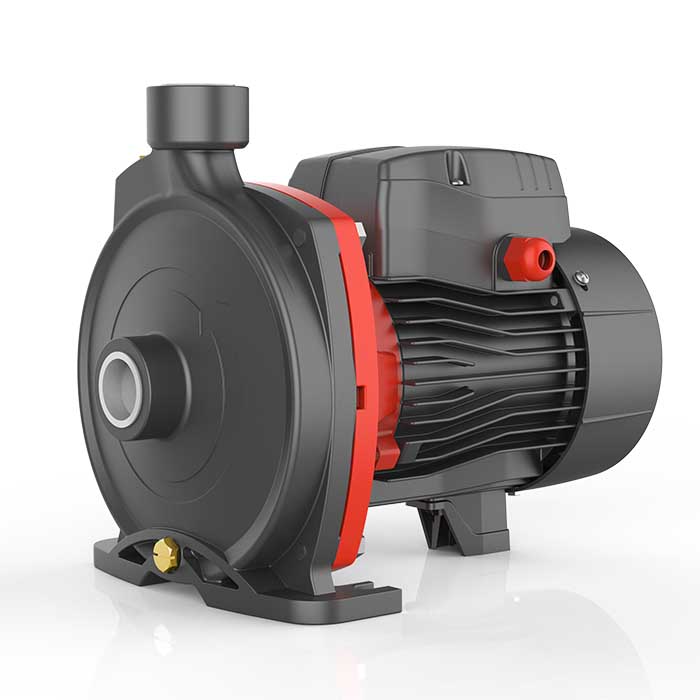

Leo Centrifugal Water Pump ACM60-PB

The Leo ACM60-PB Centrifugal Water Pump offers robust performance and energy-efficient water transfer in various settings. Designed for clean water and similar non-corrosive liquids, this high-capacity pump runs on dual voltage (220-240V), delivering a strong 0.8HP motor power and a maximum head of 27 meters. Its corrosion-resistant cast iron body, AISI 304 shaft, and low-noise bearings ensure durability and smooth operation. Ideal for residential and commercial applications — including irrigation, firefighting, and HVAC — this centrifugal water pump is equipped with an IE2-rated motor and built-in thermal protection for long-lasting safety and reliability.

Leo Centrifugal Water Pump Features

• 0.8 HP motor, dual voltage (220–240V), 60Hz operation
• Head height up to 27 meters, 1" inlet × 1" outlet
• Designed for clean water and non-corrosive liquids
• Cast iron pump body with anti-rust coating
• Stainless steel AISI 304 shaft and impeller (Brass or AISI 304)
• Mechanical seal: Carbon/Ceramic for secure sealing
• Maximum liquid temperature: 60°C
• Suction capacity up to 8 meters
• Built-in thermal protector for single-phase motors
• Quiet operation with long-lasting bearings
• Motor with high-quality copper winding
• Insulation class: F for improved motor safety
• Enclosure class: IPX4 for dust and water protection
• Maximum ambient temperature: 50°C
• Energy-efficient IE2 motor (Three-phase, 0.75kW)
• Unit weight: 11.3 kg

Application Fields

• Water supply for homes and commercial buildings
• Pressure boosting in tall structures
• Firefighting system installations
• Garden irrigation and long-distance water transfer
• Circulation in HVAC (heating and cooling) systems
