Leo Centrifugal Water Pump, 1HP, 60Hz, Dual Voltage 240-220V, Head 36m, Inlet x Outlet 1 x 1 inch,13.4kg Clearance offer without warranty. Spare parts are discontinued ACM75-PB

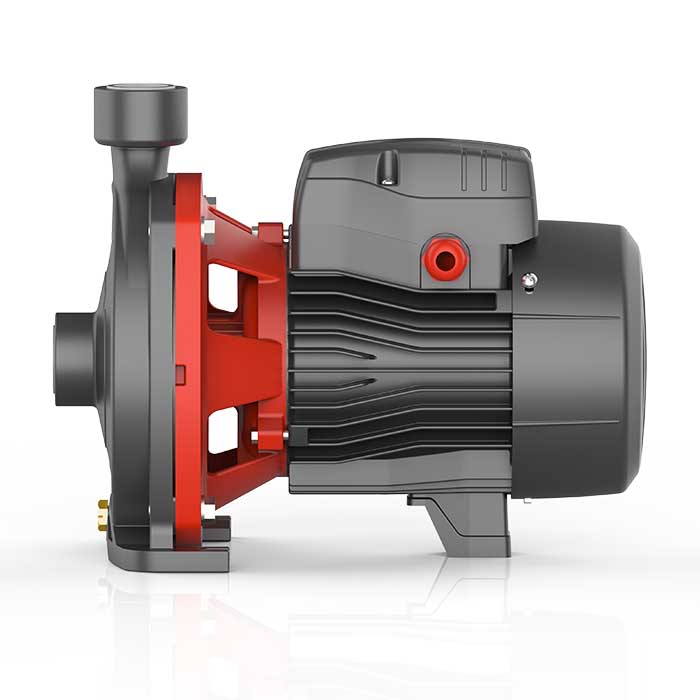

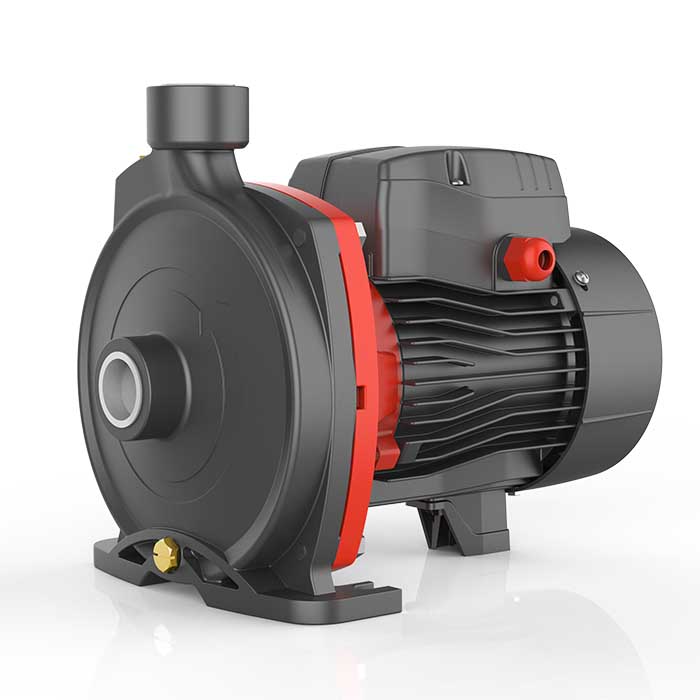

Leo Centrifugal Water Pump ACM75-PB

The Leo ACM75-PB Centrifugal Water Pump is a powerful and dependable solution for transferring clean water and non-corrosive liquids. Equipped with a 1HP copper-wound motor and dual voltage support (220V/240V, 60Hz), it delivers a max head of up to 36–37 meters with strong and efficient flow. Its rugged cast iron body, stainless steel shaft (AISI 304), and brass or stainless impeller ensure long-lasting performance. Designed for pressure boosting, irrigation, HVAC, and general water transfer, this centrifugal water pump combines quiet operation with reliable thermal protection and energy-saving IE2 motor technology.

Leo Centrifugal Water Pump Features

• 1HP motor, dual voltage: 220V/240V, 60Hz frequency.
• Maximum head: 36–37 meters for high-lift applications.
• Inlet and outlet size: 1 inch × 1 inch.
• Cast iron body with special anti-rust coating.
• AISI 304 stainless steel shaft and impeller (Brass/AISI 304).
• Carbon/Ceramic mechanical seal to prevent leakage.
• Maximum liquid temperature: 60°C.
• Maximum suction lift: 8 meters.
• Built-in thermal protector for single-phase motor safety.
• Quiet operation with low-noise, long-life bearings.
• Motor with pure copper winding for performance and durability.
• Insulation Class: F.
• Enclosure protection: IPX4 (splash and dust resistant).
• Maximum ambient temperature: 50°C.
• Energy-efficient IE2 motor (Three-phase, 0.75kW power).

Application Fields

• Residential and commercial water supply.
• Pressure boosting in high-rise buildings.
• Firefighting systems and emergency water delivery.
• Agricultural irrigation and long-distance water transfer.
• Circulation in heating and cooling (HVAC) systems.
