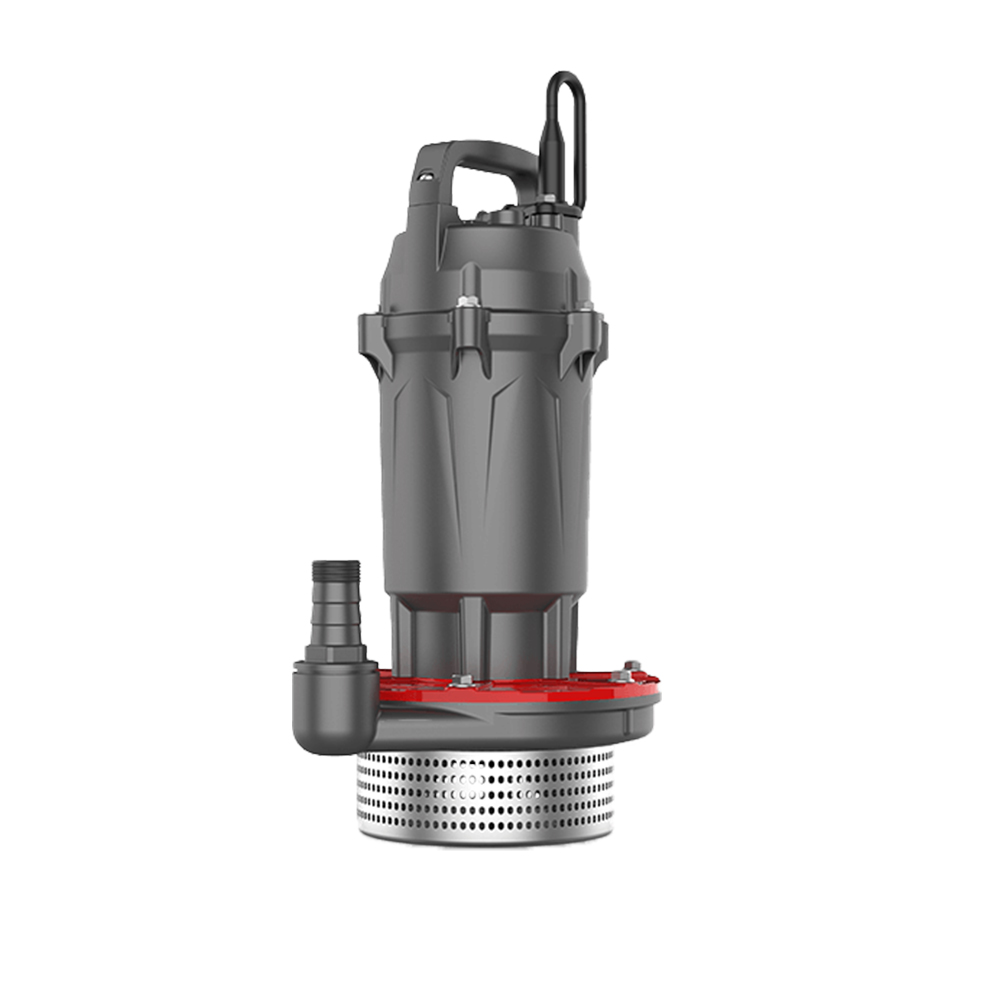

Leo Submersible Well Water Pump, Power 0.5 HP, Head 16m, Pipe Size 1 inch, 7.5kg Clearance offer without warranty. Spare parts are discontinued QDX1.5-15-0.37LA
241
306
Submersible Well Water Pump
- Pump Body From The Cast Iron
- Brass Impeller From Stainless Steel
- Maximum. Liquid Temperature +40C
- Maximum. Immersion Depth: 5m
- Protection Class IP68
Leo Water Pump Machine QDX1.5-15-0.37LA
The Leo well water pump is constructed with a durable cast iron pump body that has undergone special anti-rust treatment, ensuring longevity and reliability even in challenging environments. Capable of operating at altitudes of up to 16 meters, making it suitable for various settings and applications. The Leo well water pump has a maximum suction depth of up to +8 meters ensuring efficient water intake for optimal performance.The submersible well water pumps are essential for extracting water from underground sources efficiently and reliably.
Leo Water Pump Machine Features:
- Can handle liquid temperatures of up to +40°C, allowing it to work with a wide range of water types and temperatures.
- Equipped with a built-in thermal protector for the single-phase motor, protecting it from overheating and extending its lifespan.
- Insulation class rated as B and protection class rated as IP68, offering superior safety features for worry-free operation.
- Copper winding motor.
- The Shaft, made from stainless steel, ensures durability and reliability.
Leo Water Pump Machine Application:
- Well Water Extraction
- Agricultural Irrigation
- Industrial Applications

| Part 1 | Motor |
|---|---|
| Insulation class | F |
| Ingress protection | IP68 |
| Motor | 220/240 v 60hz |
| Power | 0.37 kw, 0.5 HP |
| Part 2 | PUMP |
| Max. immersion depth | 5 m |
| Max. liquid temperature | +40℃ |
| Liquid PH level from | 6.5 - 8 |
| Max. Head | 16m |
| Pipe Size | 1 inch |
| Maximum sand content is | 0.1%. |
| Passage of suspended solids up to | 0.2mm. |
| Weight | 7.5 KG |
| ID | 2557730 |
