Leo Centrifugal Water Pump 2 HP, Head 22m, Inlet x Outlet 2 x 2 inch, 20.7kg Clearance offer without warranty. Spare parts are discontinued ACm150B2
506
731
Centrifugal Pump
- The built-in thermal protector prevents motor overheating
- Motor copper winding
- Built-in thermal protector for single phase motor
- Pump body is made of cast iron treated against rust
- Protection class IPX4 for enhanced durability and protection

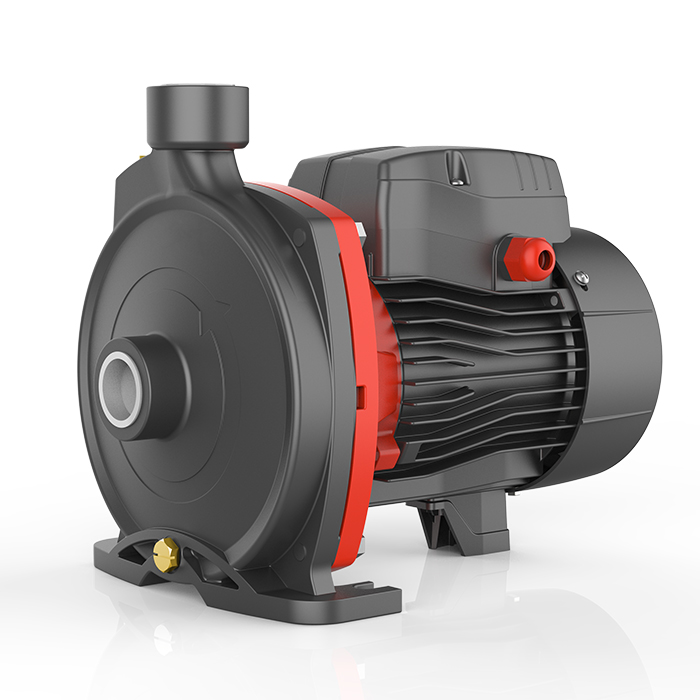

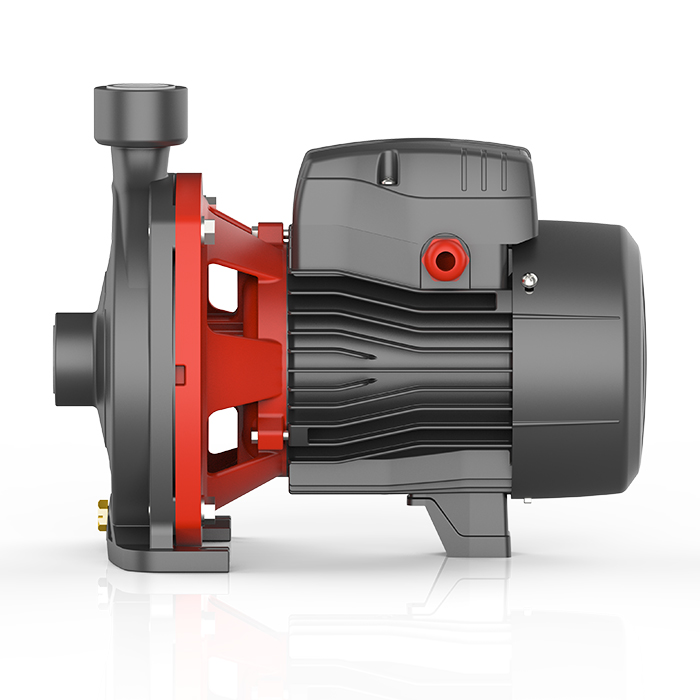

Leo Centrifugal Pump ACm150B2
The Leo ACm150B2 is a Centrifugal Water Pump (Italy Design), that runs on 1.5 kW of power at 220-240V. It is designed to pump clean water and is suitable for various applications like industrial use, urban water supply, pressure boosting for high buildings and firefighting, garden irrigation, long-distance water transfer, heating, ventilation, and air conditioning, as well as circulation and pressure boosting for cold and hot water. This pump can also be used to support equipment, etc.
Leo Water Pump Features:
- ACm150B2 Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
- Cast iron pump body and support under special anti-rust treatment.
- The durable stainless steel Impeller construction ensures longevity and resistance to corrosion
- Max. Liquid Temperature +40C
- Protection class IPX4 for enhanced durability and protection
- Motor with copper winding.
- The built-in thermal protector prevents motor overheating
Leo Centrifugal Pump Application:
- Agriculture
- Residential buildings
- Industrial facilities
- Irrigation systems
| Part 1 | Motor |
|---|---|
| Insulation class | F |
| Protection class | IPX4 |
| Power | 5.5 KW , 7.5 HP |
| Voltage | 220v/ 240V , 60Hz |
| Max. ambient temperature | 40°C |
| Part 2 | Pump |
| Max. Head | 22m |
| Pipe Size | 2” X 2” |
| Pump Max. Liquid Temperature | +60° C |
| Pump Max. Suction | +8 m |
| Weight | 20.7 KG |
| ID | 2557725 |
