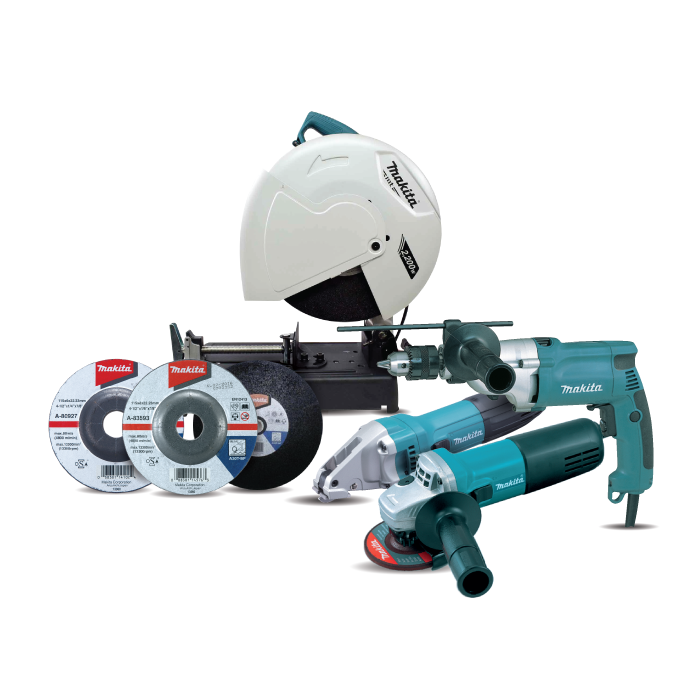

Makita 19 Piece Combo Kit: Portable Metal Cut Off, Angle Grinder, Impact Drill, Metal Shear, 15 abrasive, grinding and cutting discs 01-63-STEEL
3,391
Makita Combo Kit
- Portable Metal Cut Off:Powerful 2200 W motor delivers 3900 RPM for superior performance and durability
- Angle Grinder:Double Insulation
- Impact Drill:Torque Limiter
- Impact Drill:Variable Speed
- Metal Shear:Ergonomically best possible barrel grip for straight shear
: The Makita Combo Kit 19-piece is perfect for blacksmith workshops as it includes
- 1 x Makita M2403B Portable Metal Cut Off, Blade 355mm, 2200W, 3800rpm.
- 1 x Makita 9557HNG Angle Grinder, 4.5 inch (115mm), Slide Switch, 840W, 11000rpm.
- 1 x Makita HP2050 Impact Drill, Drill Chuck 1/2 inch (13mm), 720W, 2900 rpm, 58000 ipm.
- 1 x Makita JS1601 Metal Shear, Max. Cutting Thickness 1.6mm, 380W, 4500spm.
- 5 x Makita A-87672 Cut-off wheel for Portable Cut-off, 14 inches ( 355MM ), 3mm thickness.
- 5 x Makita A-83593 Cutting Wheel for grinder 4.5 Inch ( 115MM ), 3mm thickness.
- 5 x Makita A-80927 Grinding Wheel for grinder 4.5 Inch ( 115MM ), 3mm thickness.

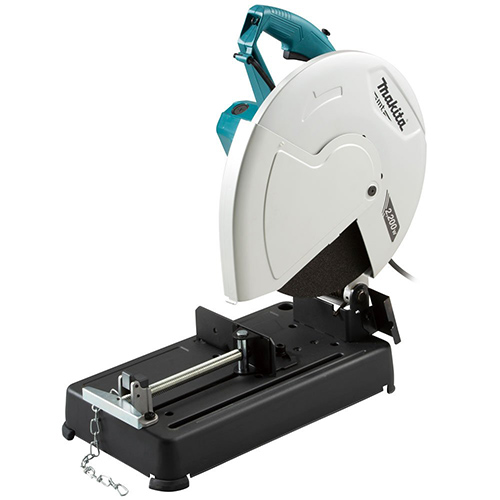

Makita M2403B Portable Metal cut off
Features and Benefits:
- The tool head can be locked. When using unhook the lock chain from the hook.
- To prevent the switch trigger from being accidentally pulled, a lock-off button is provided.
- Quick-release. vise for increased operator convenience.
- Onboard hex wrench for fast and easy blade changes and keeping it from being lost.
- Spindle lock for easy wheel changes.
- Externally accessible brushes for easy serviceability.
Accessories Included
- Hex Wrench.

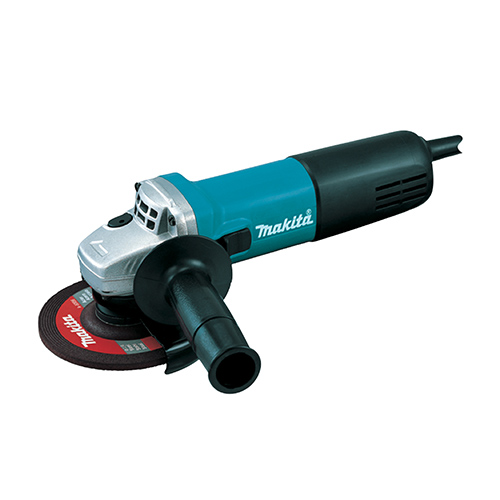

Makita 9557HNG Angle Grinder
Features and Benefits:
- A powerful 840 W motor delivers 11,000 RPM for high output power.
- Switch lever conveniently located for one hand operation
- Wheel cover protects the operator from accidental scattering of broken wheel or workpiece with minimal wheel cover movement.
- High performance motor with enough power for masonry cutting and high heat resistance.
- Labyrinth construction protects all ball bearings from dust and debris.
- Small circumference barrel grip for easy handling.
- Shaft lock for easy wheel changes.
- Easier repairing of gear section assembled with key.
Accessories Included
- Depressed Center Wheel.
- Lock Nut Wrench.
- Wheel Cover.
- Side Grip.

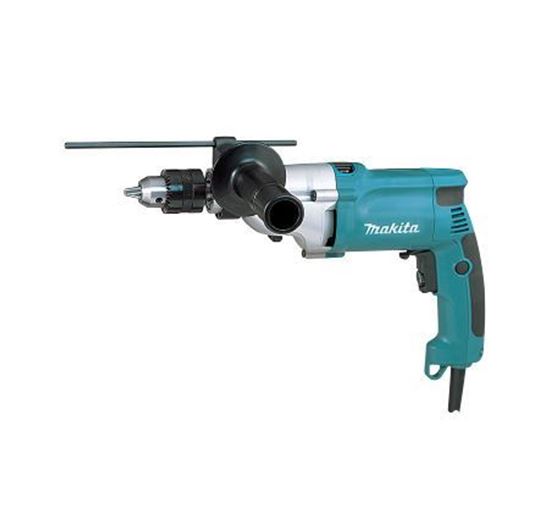

Makita HP2050 Impact Drill
Features and Benefits:
- Slender and compact body with durable metal gear housing.
- Extra-low vibration level for reduced operator fatigue.
- Dual purpose for "Rotation Only" and "Rotation with hammering".
- Built-in torque limiter stops bit rotation when hitting reinforcements. Industrial strength keyed chuck.
- A positive stop mode selector prevents accidental mode disengagement
- Large trigger switch and 360 degree swivel side handle for added comfort
- Recessed lock-on button for continuous use
- Designed for low noise and reduced vibration
Accessories Included
- Side handle
- Chuck key
- Depth gauge
JS1601 Metal Shear
Features and Benefits:
- Mainly for Straight Cutting.
- Ergonomically best possible barrel grip for straight shear.
- Side blades are fixed for more stability.
- The rear cover is ergonomically tapered for easy grip.
- Fast Cutting Action In Steel And Aluminium With Increased Comfort, Maneuverability, And Control.
- Small circumference motor housing for increased comfort, maneuverability, and control.
- Ribbed motor housing and rear cover for improved gripping during operation.
- Removes continuous metal curls with no distortion.
- 360 degree rotatable shear head.
Accessories Included
- Hex Wrench
- Thickness Gauge

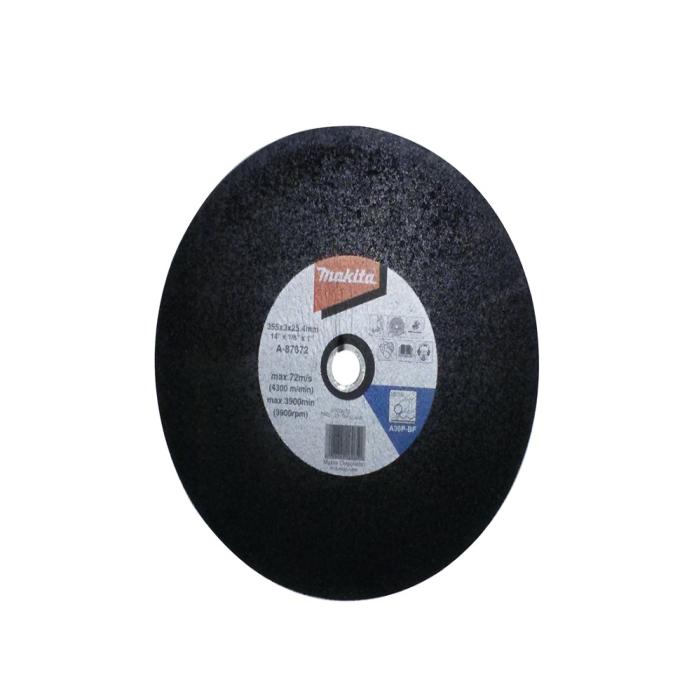

Makita A-87672 cut-off wheel
Makita Metal Cut-Off 14 inch disc is designed for cutting and slotting all types of metal, including Steel, Cast iron, and other hard metals. This cut-off disc is for use in Portable Cut-off and is designed for metal cutting.
Features and Benefits:
- For Portable Cut-off
- For all ferrous materials – Steel, Cast iron, and other hard metals

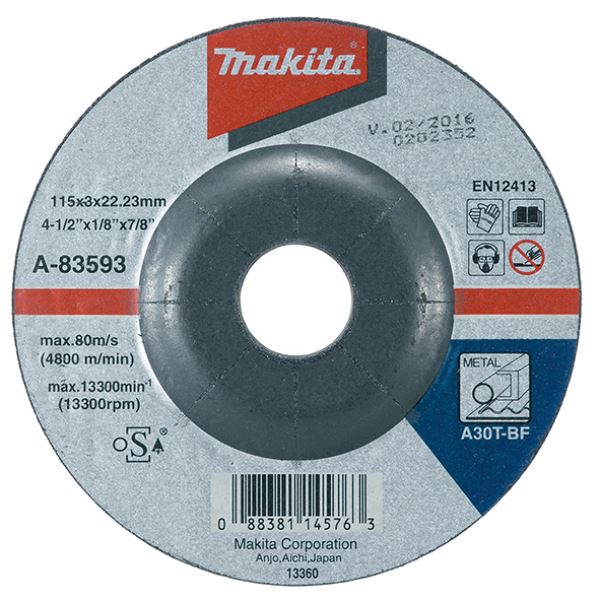

Makita A-83593 Cutting Wheel
Makita high-quality metal cutting discs for perfect cutting finish every time. Flat cutting discs are ideal for cutting metal.
Features and Benefits:
- For fast, clean cuts, notching, and slotting.
- Make cutting metal faster and simpler with the Cutting Disc Metal 4.5inch.
- This cutting disc is perfect for cutting steel and sheet steel.
- Depressed Center cutting wheel for metal.

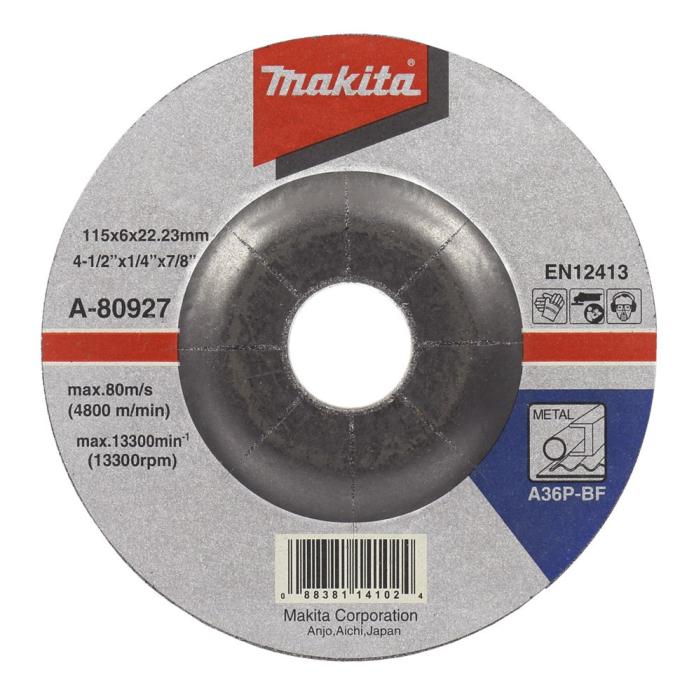

Makita A-80927 Grinding Wheel
Makita high quality metal grinding discs for perfect grinding finish every time.
Features and Benefits:
- For metal polishing and general flat grinding.
- Depressed Centre cutting wheel.
- Reduced vibration for superior user experience.
| Makita M2403B Portable Metal Cut Off | |
|---|---|
| Continuous rating input | 2,200W |
| Wheel Diameter | 355 mm |
| No Load Speed (RPM) | 3,800 |
| Capacity at 90° Round | 127 mm |
| Capacity at 90°Rectangular | 102x194 mm |
| Capacity at 90 Rectangular | 70x233 mm |
| Capacity at 45° Round | 127 mm |
| Capacity at 45° Rectangular | 115x103 mm |
| Dimensions (L x W x H) | 500x280x620 mm |
| Net weight | 14.3 kg |
| Power supply cord | 2.5m |
| Makita 9557HNG Angle Grinder | |
| Continuous rating Input | 840W |
| Capacity Abrasive disc | 115mm |
| Capacity Diamond wheel | 115mm |
| No load speed | 11,000rpm |
| Dimensions | 271mm x 129mm x 106mm |
| (L x W x H) | (10-5/8" x 5-1/8" x 4-3/16") |
| Spindle thread | DIN type |
| Net weight | 2.0kg (4.4lbs) |
| Power supply cord | 2.5m |
| Makita HP2050 Impact Drill | |
| Continuous rating Input | 720W |
| Capacity Concrete | 20 mm (3/4”) |
| Capacity Steel | Hi 8 mm (5/16”) |
| Capacity Steel | Lo 13mm (1/2”) |
| Capacity Wood | Hi 25 mm (1”) |
| Capacity Wood | Lo 40mm (1-9/16”) |
| Blows per minute | Hi 0 – 58,000 |
| Blows per minute | Lo 0 – 24,000 |
| No load speed | Hi 0 – 2,900 rpm |
| No load speed | Lo 0 – 1,200 rpm |
| Overall length | 362 mm (14-1/4”) |
| Net weight | 2.5 kg (5.6 lbs.) |
| Power supply cord | 2.5m |
| Makita JS1601 Metal Shear | |
| Continuous rating input | 380W |
| Capacity Steel up to 400 N | mm² / : 1.6mm |
| Capacity Steel up to 600 N | mm² : / 1.2mm |
| Capacity Steel up to 800 N | mm² : / 0.8mm |
| Capacity Aluminum up to 200 N | mm² : / 2.5mm |
| Min. cutting radius | 250mm (9-7/8”) |
| Strokes per minute (spm) | 4,500 |
| Dimensions | 320 x 70 x 78mm |
| Net weight | 1.4kg (3.1lbs) |
| Power supply cord | 2.5m |
| Makita A-87672 cut-off wheel | |
| Size (mm) | 355 x 3.0 x 25.4 |
| Grit | A36P |
| Type | Smooth |
| Max. RPM | 3,900 |
| Makita A-83593 Cutting Wheel | |
| Size (mm) | 115 x 3.0 x 22.23 |
| Grit | A30T |
| Max. RPM | 13,290 |
| Makita A-80927 Grinding Wheel | |
| Size (mm) | 115 x 6.0 x 22.23 |
| Grit | A36P |
| Max. RPM | 13,290 |
| Weight | 22 KG |
| ID | 2658416 |
