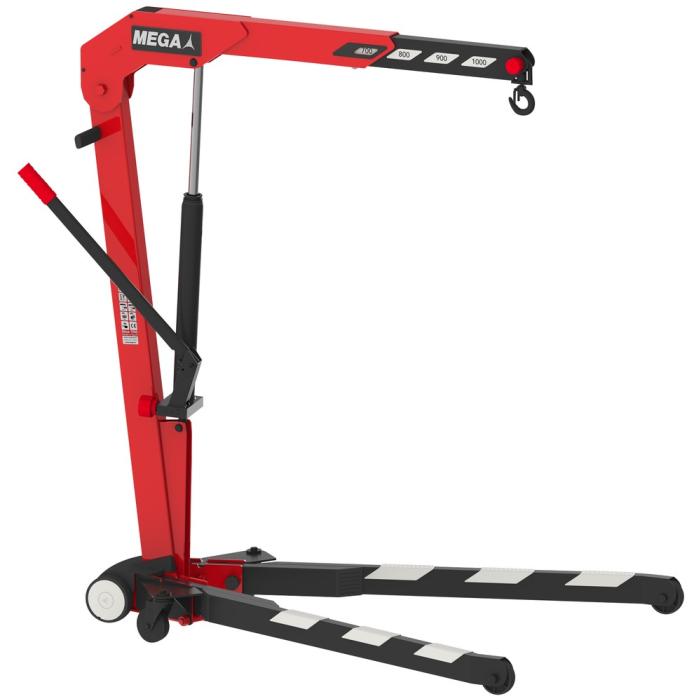

Mega Hydraulic Folding Crane 1000 kg, HEC0015 CRV10
2,966
Hydraulic Folding Crane
25% Use Code EMP6001
Fitted with polyamide wheels and castors to facilitate manoeuvrability
- These wheels will not damage garage floors, do not rust and are quiet in operation

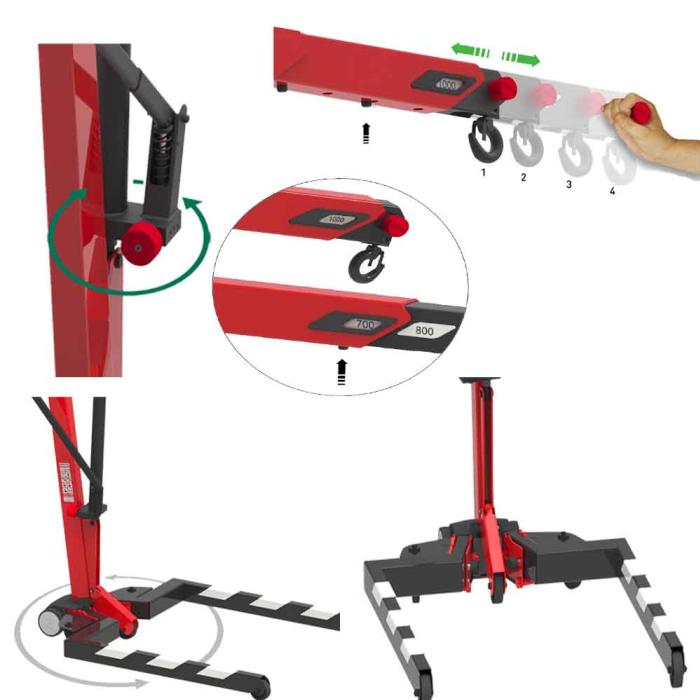

- The extendable jib changes position at the pushing of a button
- It has a handle and window to show jib postion
- A foot pendle facilitates the in-shop handling of the crane
- Fold quickly and require only a small space. they are easily moved thanks to the small wheels which are fitted.
- Window to show safe working load at the selected position. push button for quick change of position of the extendible jib.
- Swivel hydraulic unit. the pump piston spring improves operation.
release handle withe "dead man's" operation provides maximum lowering precision
- Foot pedal facilitate manoeuvrability
- Rubber protections to prevent from any possible damage to the vehicle or to the crane legs
| Capacity | 1000 KG |
|---|---|
| Dimentions | |
| A | 1580 |
| B | 2200 |
| C | 1580 |
| D,D | 970, 860 |
| E | 112 |
| R Mininmum | 960 |
| R Maximum | 1300 |
| G | 530 |
| Weight | 83 / 92 kg |
| Weight | 92 KG |
| ID | 2544824 |
