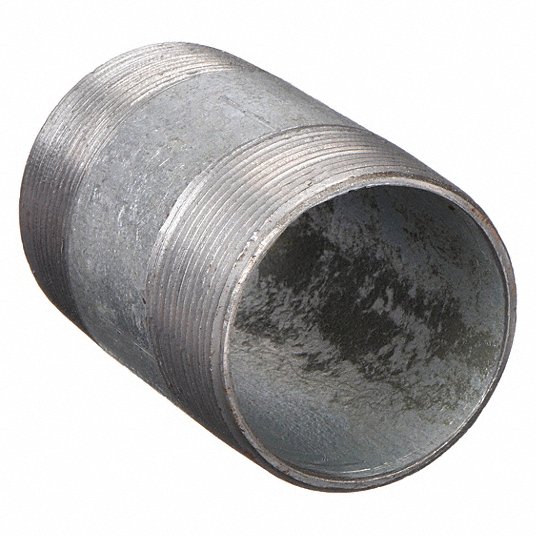

Beck Nipple, Galvanized Steel, 3/4 in Nominal Pipe Size, 3 in Overall Lg, Threaded on Both Ends, Welded 0331019802
7
Nipple
Split in 4 payments of 1.55
monthly without fees , learn more
Split it into 4 payments of 1.55
interest-free , learn more
Features
- Has a weld bead inside, is NPT threaded at both ends, and resists rust and corrosion.
- For low-pressure plumbing applications including air, water, oil, natural gas, and steam.
- Certified for use in potable water applications.
- Threads conform to ANSI B1.20.1 standards.
- Material conforms to ASTM A-53 Type E, Grade A standards.
- Manufacturing conforms to ASTM A-733 standards.
| Application | Air, Gas, Oil, Steam, Water |
|---|---|
| Finish | Coating / Galvanized |
| Fitting Compatibility | Schedule 40 |
| Inside Diameter | 53/64 in |
| Material | Steel |
| Material Grade | Grade A |
| Maximum Operating Pressure | 150 psi @ 150 Degrees F |
| Metal Pipe Construction | Welded |
| Nominal Pipe Size | 3/4 in |
| Outside Diameter | 1 3/64 in |
| Overall Length | 3 in |
| Pipe Weld Type | Continuous Weld |
| Schedule | Schedule 40 |
| Side A Connection Type | Threaded |
| Side A Gender | Male |
| Side A Thread Type | NPT |
| Side B Connection Type | Threaded |
| Side B Gender | Male |
| Side B Thread Type | NPT |
| Standards | ASTM A53 Type F, ASTM A733, Grade A |
| Thread Configuration | Threaded on Both Ends |
| Wall Thickness | 0.113 in |
| Weight | 0.095 KG |
| Code | BD-29VG41 |
| ID | 1258083 |
