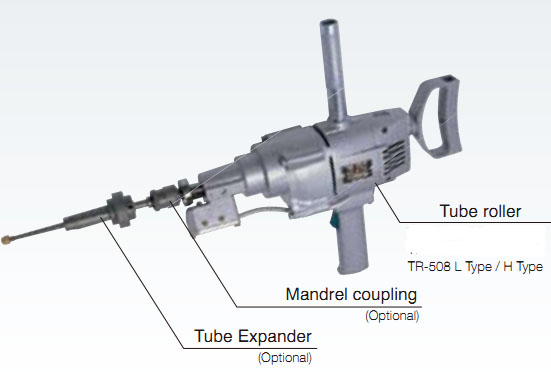

Sugino Tube Expander TRC1022S22
4,998
7,140
Tube Expander
Features
- This is a driving unit for tube expansion.
- It performs clockwise rotation, stopping, and counterclockwise rotation.
- 8 types of tube rollers are available depending on differences in the tube expansion capacity.
- The machine has a wide working range from 10-70 mm with a full range of pipe materials from copper to stainless steel, or super hard materials
*Note - Tube Expander and Mandrel coupling not included with Tube Roller Machine.
Application
- Sugino tube expander is a product line widely used in boiler manufacturing plants.
- Heat exchangers.
- Repair, maintenance, and maintenance units in power plants.
- Petroleum.
- Heavy industry.
| apacity | Steel, stainess steel / 16-25 mm |
|---|---|
| apacity | Copper / 19-38 mm |
| No load | Current (A) / 2.8 |
| No load | Speed (min) / 820 |
| Full load | |
| Full load | Current (A) / 8.0 |
| Full load | Speed (min) / 480 |
| Full load | Torgue (N.m) / 8.0 |
| Maximum load | Current (A) / 9.0 |
| Maximum load | Speed (min) / 450 |
| Maximum load | Torgue (N.m) / 9.3 |
| Spindle size | 12.7 mm |
| Weight | 8.5 KG |
| ID | 2248966 |
