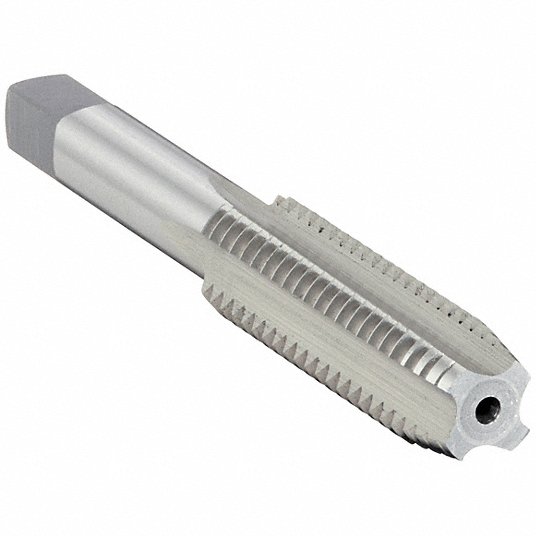

Heli-Coil Screw Thread Insert STI Tap: 9/16 inch-18 Thread Size, 1 13/16 inch Thread Length, Plug, Right Hand 38193-9
285
407
Right Hand Tap
Features
- High-speed steel STI taps provide good wear resistance in general purpose tapping applications in a range of materials.
- These taps have a bright finish that provides a smooth, polished surface.
- The Taps Supplied For Standard Thread Repair Look Like Conventional Taps And May Be Used With The Same Tap Handle As Conventional Taps.
| Thread Size | 9/16"-18 |
|---|---|
| Thread Standard | UNF |
| Tap Material | High Speed Steel |
| Tap Finish | Bright (Uncoated) |
| Thread Length | 1 13/16 in |
| Overall Length | 3 13/16 in |
| Tap Chamfer | Plug |
| Thread Limit | H3 |
| Thread Direction | Right Hand |
| Number of Flutes | 4 |
| 55% Thread Drill Size | 13.25 mm |
| 65% Thread Drill Size | 33/64 in |
| 75% Thread Drill Size | 12.90 mm |
| Extended Neck | Yes |
| Measurement System | Fractional Inch |
| Shank Dia. | 15/32 in |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Standards | ANSI, ISO 14001, ISO 9001, OS 9000 |
| Tap Grouping | Individual |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | 9/16"-18 |
| Threads per Inch | 18 |
| Weight | 0.09 KG |
| ID | 2243594 |
