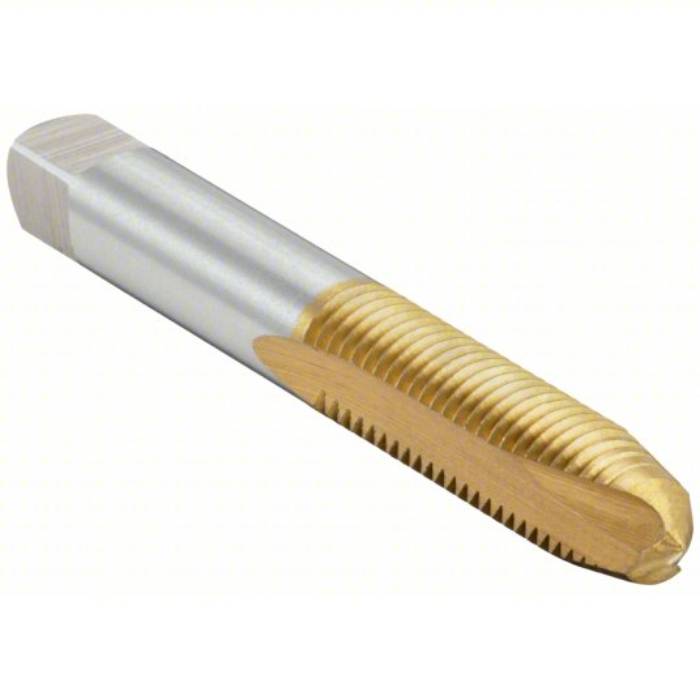

Westward Spiral Point Tap, M8x1.25 Thread Size, 1 1/8 inch Thread Length, 2 23/32 inch Overall Length, Plug 5TWN3
17
25
Spiral Point Tap
Split in 4 payments of 4.23
monthly without fees , learn more
Split it into 4 payments of 4.23
interest-free , learn more
Westward 5TWN3 Spiral Point Tap Features
- The coating on these taps protects them from wear and allows them to be used at higher speeds than taps with a bright finish.
| Thread Size | M8x1.25 |
|---|---|
| Thread Standard | Metric Coarse |
| Tap Material | High Speed Steel |
| Tap Finish | TiN |
| Thread Length | 1-1/8 inch |
| Overall Length | 2-23/32 inch |
| Thread Limit | D5 |
| Class of Fit | 3B |
| Thread Direction | Right Hand |
| Primary Material Application | All Materials |
| Coolant Fed | Non-Coolant Through |
| Drill Bit Size | 6.70 mm |
| Material Grade - Machining | M2 |
| Measurement System | Metric |
| Shank Dia. | 5/16 inch |
| Shank Type - Machining | Straight |
| Square Size | 0.2380 inch |
| Standards | ASME |
| Tap Chamfer | Plug |
| Tap Thread Size | M8x1.25 |
| Thread Limit | Class of Fit / D5 / 3B |
| Weight | 0.027 KG |
| Code | BD-5TWN3 |
| ID | 1450128 |
