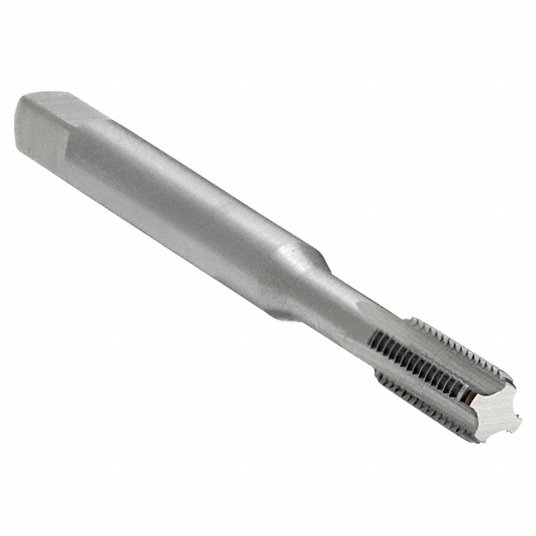

Cleveland Straight Flute Tap, M4 x 0.7 Thread Size, 19.05 mm Thread Length, 54.10 mm Overall Length, Bottom C54248
24
34
Straight Flute Tap
Split in 4 payments of 5.79
monthly without fees , learn more
Split it into 4 payments of 5.79
interest-free , learn more
Features
- The bright finish on these taps provides a smooth, polished surface.
| Thread Size | M4x0.7 |
|---|---|
| Thread Standard | Metric |
| Tap Chamfer | Bottom |
| Tap Material | High Speed Steel |
| Tap Finish | Bright (Uncoated) |
| Thread Length | 19.05 mm |
| Overall Length | 54.10 mm |
| 75% Thread Drill Size | 3.30 mm |
| Thread Limit | D4 |
| Class of Fit | 6H |
| Thread Direction | Right Hand |
| Number of Flutes | 4 |
| Tap Length Standard | USCTI |
| Tap Shank Standard | USCTI |
| 55% Thread Drill Size | 3.50 mm |
| 65% Thread Drill Size | 3.40 mm |
| Extended Neck | Yes |
| Measurement System | Metric |
| Primary Material Application | All Materials |
| Primary Material Application ISO Code | H, K, M, N, O, P, S |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Secondary Material Application ISO Code | K, M, N, P |
| Series | 1003 |
| Shank Dia. | 4.27 mm |
| Shank Length | 34.93 mm |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 3.33 mm |
| Standards | USCTI TABLE 302A |
| Tap Grouping | Individual |
| Tap Style | Straight Flute (Hand) |
| Thread Limit | Class of Fit / D4 / 6H |
| Thread Pitch | 0.70mm |
| Weight | 0.006 KG |
| ID | 2384973 |
