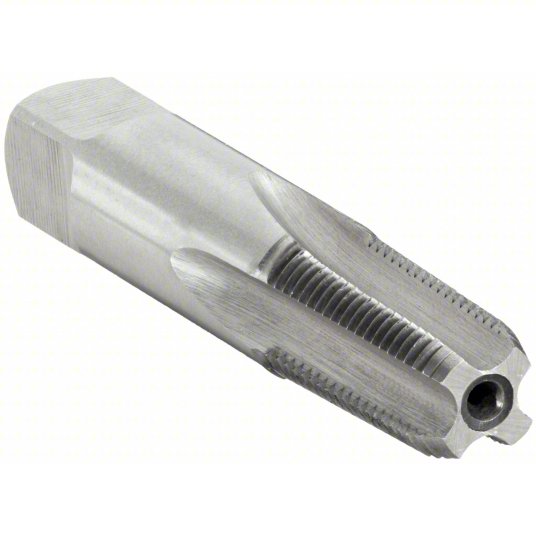

Westward Pipe and Conduit Thread Tap, 1/4 inch-18 Thread Size, 1 1/16 inch Thread Length, 2 7/16 inch Overall Length 5PXH2
48
68
Pipe and Conduit Thread Tap
Split in 4 payments of 11.87
monthly without fees , learn more
Split it into 4 payments of 11.87
interest-free , learn more
Westward 5PXH2 Pipe and Conduit Thread Tap
High-speed steel taps boast excellent wear resistance, meaning these taps stay sharp longer, ideal for general-purpose tapping applications. They effectively work on a range of materials, making them a go-to tool for many situations.
| Thread Size | 1/4 inch-18 |
|---|---|
| Thread Standard | NPT |
| Tap Material | High Speed Steel |
| Tap Finish | Bright (Uncoated) |
| Thread Length | 1-1/16 inch |
| Overall Length | 2-7/16 inch |
| 75% Thread Drill Size | 0.4375 inch |
| Class of Fit | 3B |
| Number of Flutes | 4 |
| Primary Material Application | All Materials |
| Thread Direction | Right Hand |
| Coolant Fed | Non-Coolant Through |
| Drill Bit Size | 7/16 inch |
| Features | Cutting Internal Pipe Threads |
| Flute Type | Straight |
| Material Grade - Machining | M2 |
| Measurement System | Fractional Inch |
| Shank Dia. | 9/16 inch |
| Shank Length | 1-3/8 inch |
| Shank Type - Machining | Straight |
| Square Size | 0.4210 inch |
| Standards | ASME |
| Tap Chamfer | Semi-Bottoming |
| Tap Style | Pipe |
| Tap Thread Size | 1/4 inch-18 |
| Threads per Inch | 18 |
| Weight | 0.0226 KG |
| Code | BD-5PXH2 |
| ID | 1440620 |
