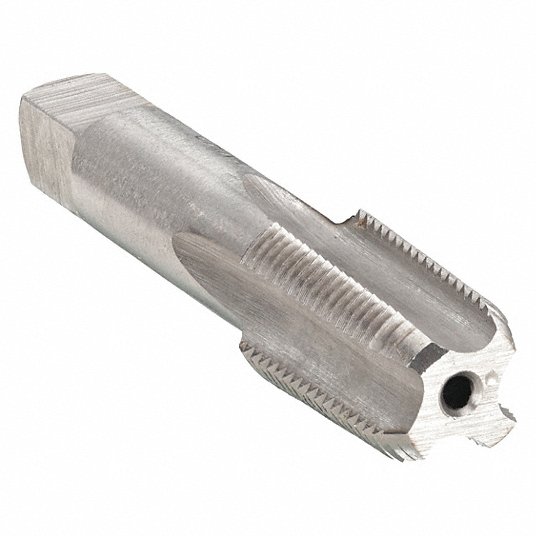

Westward Pipe and Conduit Thread Tap: 3/8inch-18 Thread Size, 1 1/16 inch Thread Length, 2 9/16 inch Overall Length 5TWT9
45
64
Pipe and Conduit Thread Tap
Split in 4 payments of 11.07
monthly without fees , learn more
Split it into 4 payments of 11.07
interest-free , learn more
Features
- High-speed steel taps provide good wear resistance in general purpose tapping applications in a range of materials.
| Thread Size | 3/8inch-18 |
|---|---|
| Thread Standard | NPT |
| Tap Material | High Speed Steel |
| Tap Finish | Bright (Uncoated) |
| Thread Length | 1 1/16 inch |
| Overall Length | 2 9/16 inch |
| 75% Thread Drill Size | 0.5625 inch |
| Class of Fit | 3B |
| Number of Flutes | 4 |
| Primary Material Application | All Materials |
| Thread Limit | Class of Fit / 3B |
| Thread Direction | Right Hand |
| Coolant Fed | Non-Coolant Through |
| Drill Bit Size | 37/64 inch |
| Features | For Use With a Wide Variety of Materials |
| Flute Type | Straight |
| Material Grade - Machining | M2 |
| Measurement System | Fractional Inch |
| Series | 311-60205 |
| Shank Dia. | 3/4 in |
| Shank Length | 1 1/2 inch |
| Shank Type - Machining | Straight |
| Square Size | 0.5150 inch |
| Standards | ASME |
| Tap Chamfer | Semi-Bottom |
| Tap Grouping | Individual |
| Tap Style | Pipe |
| Tap Thread Size | 3/8inch-18 |
| Threads per Inch | 18 |
| Weight | 0.09 KG |
| ID | 1842091 |
