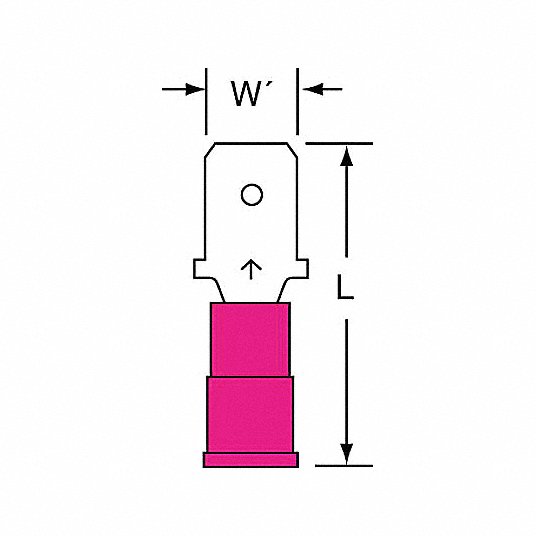

3M Red Male Disconnect, Nylon Insulation Type, 22 to 18 AWG Wire Range MNG18-250DMK
885
1,264
Red Male Disconnect
Split in 4 payments of 221.17
monthly without fees , learn more
Split it into 4 payments of 221.17
interest-free , learn more
Features
- The female disconnect attaches by slipping its tongue over the male tab.
- Disconnecting is made quick and easy by the female part's rolled edges, which make a good holding force.
- The nylon insulation provides a higher temperature rating.
| Insulation | Full |
|---|---|
| Insulation Type | Nylon |
| Insulation Color | Red |
| Wire Range | 22 to 18 AWG |
| Tab Size | 0.032 in x 0.250 in |
| Barrel Inside Dia. | 0.065 in |
| Max. Temp. | 221 Degrees F |
| Max. Voltage | 600 V |
| Overall Length | 0.92 in |
| Seam | Brazed |
| Connection Material | Tin-Plated Brass |
| Standards | CSA Certified, RoHS Compliant, UL Listed |
| Connection Type | Crimp |
| Weight | 1.2 KG |
| Code | BD-2DRH7 |
| ID | 1261212 |
