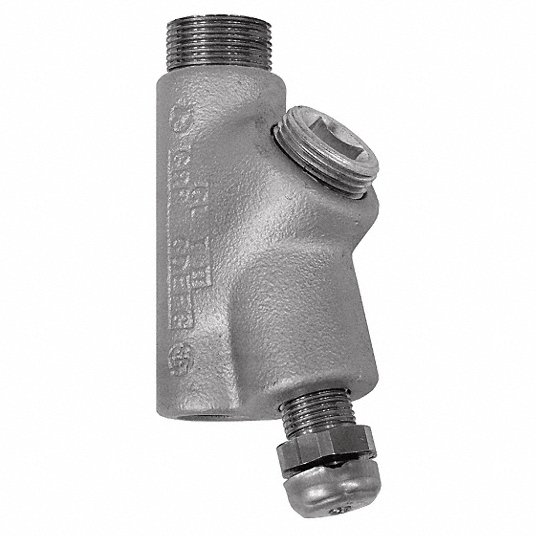

Appleton Electric Fill, Sealing Fitting, 4 5/16 in 25%, 1 in FNPT x 1 in MNPT Ends, Grayloy Iron EYD-36
256
366
Sealing Fitting
Split in 4 payments of 63.89
monthly without fees , learn more
Split it into 4 payments of 63.89
interest-free , learn more
Explosionproof, dust-ignitionproof, and raintight, this sealing fitting is for use with threaded rigid metal conduit and IMC.
- It prevents the passage of gases, vapors, or flames from one portion of a conduit system to another.
- It restricts any explosion to the sealed-off enclosure, and prevents pressure piling within the conduit system.
- A smooth, rounded integral bushing in each hub protects conductor insulation.
-The accurately tapped, tapered threads provide tight, rigid joints and ground continuity.
| Ends - Hazardous Fittings | 1 in FNPT x 1 in MNPT |
|---|---|
| Conduit Fitting Material | Grayloy Iron |
| Conduit Orientation | Vertical |
| Overall Length - Fitting | 4 5/16 in |
| Hazardous Location Rating | Class I, Division 1 and 2, Groups C, D; Class II, Groups E, F, G; Class III |
| Standards | CSA C22.2 No 30, UL 886 |
| Application | Prevent Passage Of Gases, Vapors Or Flames From One Portion Of Conduit Systems To Another |
| Weight | 1.123093792 KG |
| ID | 1117705 |
