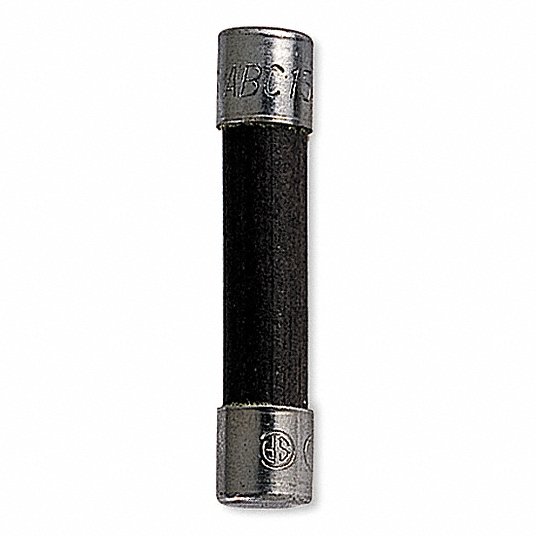

Fuse, Fast Acting, 20 A, ABC Series, PK 5 ABC-20-R
36
52
Fuse
Fast-acting ceramic fuses open within seconds of being exposed to overloads and short circuits. - Also called fast-blow ceramic fuses, they are highly sensitive to changes in current flow and don't tolerate temporary overload currents or power surges. - Ceramic fuses protect against overcurrent in high-current circuits found in AC or DC electronics, appliances, and electrical equipment. They have higher interrupting ratings and withstand higher temperatures than glass fuses. - These small, cylindrical fuses have an opaque body that shows no outward signs when the fuse has blown, so they're typically tested with a multimeter or ohmmeter to check their function.
| Amps | 20 A |
|---|---|
| AC Voltage Rating | 250V AC |
| DC Voltage Rating | 125V DC |
| Series | ABC |
| Visual Indication | Nonindicating |
| Speed | Fast Acting |
| Body Style | Cylindrical |
| Fits Fuse Block Style | Nonrejection |
| Interrupt Rating | 10kA at 125V DC, 1kA at 125V AC, 400A at 250V AC |
| Fuse Size | 1-1/4 in L x 1/4 in dia |
| Length | 1 1/4 in |
| Diameter | 1/4 in |
| Equivalent Brand and Series | Bussmann ABC, Littelfuse 314, Mersen GAB |
| Equivalent Series | 314, ABC, GAB |
| Body Material | Ceramic |
| Compatible Fuse Block Series | 3823, HFA, HHN, HK, HKP, HPF, HRK, HTB, S-8000 |
| Element | Single |
| Standards | CSA Certification Class 1422-30, UL 248-14 Guide JDYX2 |
| Weight | 0.00453592 KG |
| ID | 1158256 |
