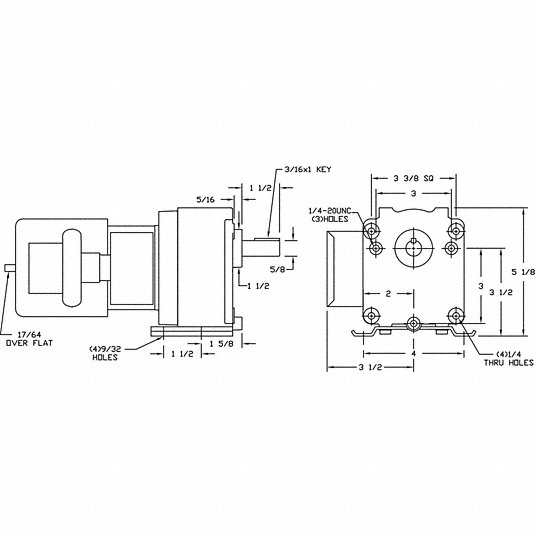

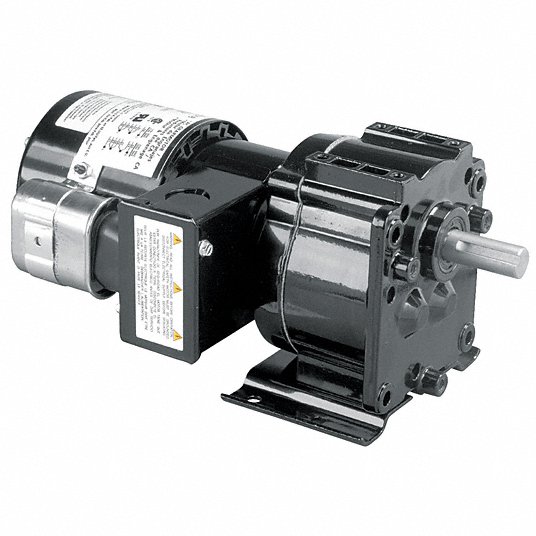

Dayton AC Gearmotor 115/230 Nameplate RPM 15 RPM Max. Torque 202.0 in-lb Enclosure TEFC 4Z518
1,103
1,576
Gearmotor
Split in 4 payments of 275.70
monthly without fees , learn more
Split it into 4 payments of 275.70
interest-free , learn more
Dayton® 115/230VAC PSC TEFC Parallel Shaft Gearmotor delivers up to 385 in.-lb. of torque and keeps your operations running smoothly.
- Includes heavy-duty needle roller and thrust ball bearings on the case and ball bearings on the totally enclosed fan-cooled motor.
- With permanent heavy gear oil lubrication. Capacitor is included.
- Requires 1 disc adaptable Motor Brake No. 5X400, sold separately.
| Gearmotor Type | AC Gearmotor |
|---|---|
| Gearmotor Voltage | 115/230V AC |
| Gearmotor Phase | 1 |
| Max. Torque | 202.0 in-lb |
| Gearmotor Shaft Type | Single |
| Gearmotor Shaft Orientation | Parallel |
| Gearmotor Rotation | CW/CCW |
| Nameplate RPM | 15 RPM |
| Gearmotor Enclosure | Totally Enclosed Fan-Cooled |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Brake Type | None |
| Length Less Shaft | 8 3/4 in |
| Hz | 60/50 Hz |
| Overhung Load | 175 lb |
| Input HP | 1/15 hp |
| Gear Ratio | 107:1 |
| Full Load Amps | 1.2/0.63 |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Type | PSC |
| Capacitor Required | Included |
| Shaft Dia. (Dimension U) | 5/8 in |
| Shaft Length (Dimension V) | 1.5 in_x000D_ |
| Number of Brake Discs Required | 1 |
| Bearings | Heavy Duty Needle Roller and Thrust Balls on Case, Ball on Motor |
| Lubrication | Permanent Heavy Duty Gear Oil |
| Housing | Die Cast Aluminum |
| Gear Case Material | Die Cast Aluminum |
| Gears | Hardened Steel, 1st Stage Helical, Subsequent Stages Spur, AGMA Class 9 |
| Gear Material | Hardened Steel |
| Gear Type | Helical First Stage/Subsequent Stages Spur/AGMA Class 9 |
| Seals | Lip Type on Input and Output Shaft |
| Standards | UL Recognized, C-UL Recognized, CE Certified |
| Weight | 5.7 KG |
| ID | 1808335 |
