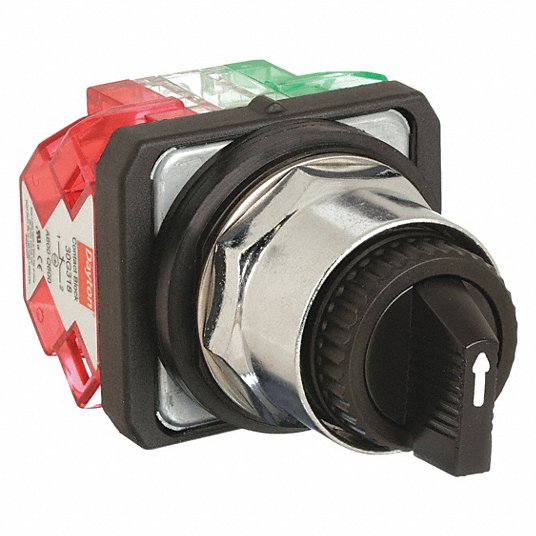

Dayton Non-Illuminated Selector Switch, 30mm, Positions, 1NO/1NC, Lever 30G302
144
205
Selector Switch
This non-illuminated selector switch is engineered to protect against corrosion and the ingress of solid foreign objects such as falling dirt, circulating dust, settling dust, lint, fibers, and flyings.
- It also offers protection against the ingress of water from dripping, splashing, and hosedowns.
- The switch also resists corrosive agents, spraying or seepage of oil and coolants, and damage from the external formation of ice on the enclosure.
| Size | 30 mm |
|---|---|
| Position | 3 |
| Action | Maintained / Maintained / Maintained |
| Contact Form | 1NO/1NC |
| Type of Operator | Lever |
| Color | Black |
| Key Removal | No Key |
| Operator Head Material | Plastic |
| Basic Material | Metal |
| Bezel Material | Zinc Die Cast |
| Bezel Color | Silver |
| Contact Rating | 10A @ 600V AC, 2.5A @ 600DC |
| NEMA Contact Rating Designation | A600/Q600 |
| NEMA Rating | 13, 4 |
| IP Rating | 65 |
| Cam | F |
| Switch Operation @ Position A | OO |
| Switch Operation @ Position B | OX |
| Switch Operation @ Position C | XO |
| Switch Operation @ Position D | No Fourth Position |
| Standards | CE Marked, CSA Certified, UL Listed |
| Weight | 0.1814368 KG |
| ID | 1618655 |
