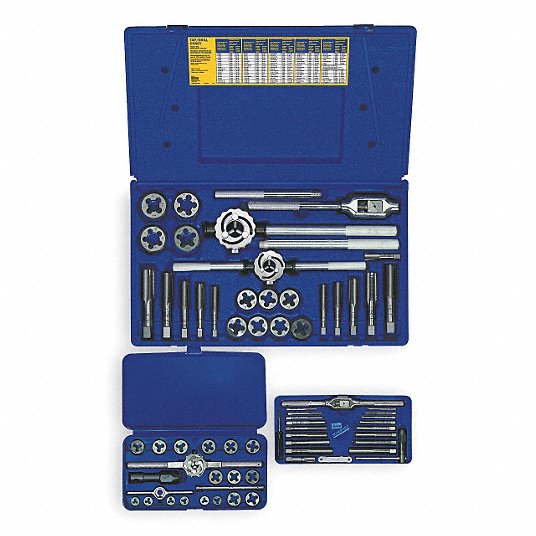

Out of Stock Irwin Tap and Die Set, Number of Pieces 66, Die Shape Hex 97312

Irwin Tap and Die Set, Number of Pieces 66, Die Shape Hex 97312

Name: Irwin Tap and Die Set, Number of Pieces 66, Die Shape Hex 97312
Brand: Irwin
SKU: 97312
Price: 1872.41 SAR
Availability: OutOfStock

Weight: 9.2 KG

1,873

(vat inclusive)

Tap and Die Set

Split in 4 payments of 468.10 monthly without fees , learn more

Split it into 4 payments of 468.10 interest-free , learn more

Quantity

Out of Stock

SKU 97312

Plumbing Threading Threading Set

Download product Catalog

IRWIN HANSON, solve endless fastening challenges 66 pieces Tap and Die Set

The taps and dies in these sets are made from carbon steel.
They are an economical choice for internal- and external-threading applications in maintenance operations.

Number of Pieces	66
Number Of Taps	27
Number of Dies in Set	27
Thread Standard	BSP, Metric
Thread Sizes Included	M10 x 1.25, M10 x 1.50, M11 x 1.50, M12 x 1.50, M12 x 1.75, M14 x 1.50, M14 x 2.00, M16 x 1.50, M16 x 2.00, M18 x 1.50, M18 x 2.50, M20 x 2.50, M22 x 1.50, M24 x 2.00, M24 x 3.00, M3 x 0.50, M4 x 0.70, M4 x 0.75, M5 x 0.80, M5 x 0.90, M6 x 1.00, M7 x 1.00, M8 x 1.00, M8 x 1.25, M9 x 1.00, M9 x 1.25, Pipe: 1/8"- 28 BSP
Thread Pitch	Metric Plug Tap and 5/8 in Hexagon Dies in sizes: 0.50mm, 0.70mm, 0.75mm, 0.80mm, 0.90mm, 1.00mm; Metric Plug Tap and 1 in Hexagon Dies in sizes: 1.00mm, 1.00mm, 1.25mm, 1.00mm, 1.25mm, 1.25mm, 1.50mm, 1.50mm, 1.50mm, 1.75mm; Metric Plug Tap and 1-7/16 in Hexagon Dies in sizes: 1.50mm, 2.00mm, 1.50mm, 2.00mm, 1.50mm, 2.50mm; Metric Plug Tap and 1-13/16 in Hexagon Dies in sizes: 2.50mm, 1.50mm, 2.00mm, 3.00mm
Threads per Inch	28
Tap Series	Hanson
Drill Bit Size	#19, #20, #30, 11/16 in, 11/32 in, 12.0mm, 13.0mm, 13/32 in, 15/64 in, 17/64 in, 2.50mm, 21/32 in, 3/8 in, 35/64 in, 37/64 in, 5.0mm, 53/64 in, 7.0mm, 7/8 in, 8.0mm, 9.50mm, R
Number of Flutes	4
Die Material	High Speed Steel
Die Shape	Hex
Die Type	Adjustable
Die Thread Sizes Included	M10 x 1.25, M10 x 1.50, M11 x 1.50, M12 x 1.50, M12 x 1.75, M14 x 1.50, M14 x 2.00, M16 x 1.50, M16 x 2.00, M18 x 1.50, M18 x 2.50, M20 x 2.50, M22 x 1.50, M24 x 2.00, M24 x 3.00, M3 x 0.50, M4 x 0.70, M4 x 0.75, M5 x 0.80, M5 x 0.90, M6 x 1.00, M7 x 1.00, M8 x 1.00, M8 x 1.25, M9 x 1.00, M9 x 1.25, Pipe: 1/8"- 28 BSP
Die Hex Size	5/8 in, 1 in, 1 7/16 in, 1 13/16 in
Case Type	Plastic
Features	4-Flute Design Ensures Fast, Easy Chip Clearance
Primary Material Application	All Materials
Primary Material Application ISO Code	H, K, M, N, P, S
55% Thread Drill Size	#37, 10.90mm, 12.50mm, 14.90mm, 16.90mm, 18.20mm, 20.90mm, 22.50mm, 27/64 in, 3.50mm, 4.40mm, 5.25mm, 55/64 in, 7.10mm, 8.90mm, 9.10mm, D
65% Thread Drill Size	#38, 1/2 in, 10.50mm, 11/32 in, 13/64 in, 14.70mm, 18.75mm, 21/32 in, 27/32 in, 27/64 in, 3.40mm, 31/64 in, 4.30mm, 45/64 in, 5/8 in, 7/8 in, 8.90mm, 9/16 in, 9/32 in, C, I
75% Thread Drill Size	10.30mm, 10.50mm, 11/32 in, 12.00mm, 12.50mm, 14.00mm, 14.50mm, 15.50mm, 16.50mm, 17.50mm, 2.50mm, 20.50mm, 22.00mm, 3.30mm, 4.20mm, 5.00mm, 53/64 in, 6.00mm, 7.00mm, 8.50mm, H
Die Material Grade	Carbon Steel
Dimensions Standard	Metric
Material - Machining	High Speed Steel
Max. Die Thread Size	M24x3
Max. Tap Thread Size	M24x3.00
Measurement System	Metric
Min. Bore Dia.	M3 x 0.50
Min. Tap Thread Size	M3x0.5
Tap Sizes Included	M10 x 1.25, M10 x 1.50, M11 x 1.50, M12 x 1.50, M12 x 1.75, M14 x 1.50, M14 x 2.00, M16 x 1.50, M16 x 2.00, M18 x 1.50, M18 x 2.50, M20 x 2.50, M22 x 1.50, M24 x 2.00, M24 x 3.00, M3 x 0.50, M4 x 0.70, M4 x 0.75, M5 x 0.80, M5 x 0.90, M6 x 1.00, M7 x 1.00, M8 x 1.00, M8 x 1.25, M9 x 1.00, M9 x 1.25, Pipe: 1/8 in - 28 BSP
Standards	ASME/ANSI B94.9-1987
Tap Chamfer	Plug, Taper
Tap Material	High Speed Steel
Tap Wrench Number	12450, 12473, 12498, 311088
Thread Direction	Right Hand
Thread Type	BSP, Metric
Weight	9.2 KG
Code	BD-2ETL6
ID	988777
