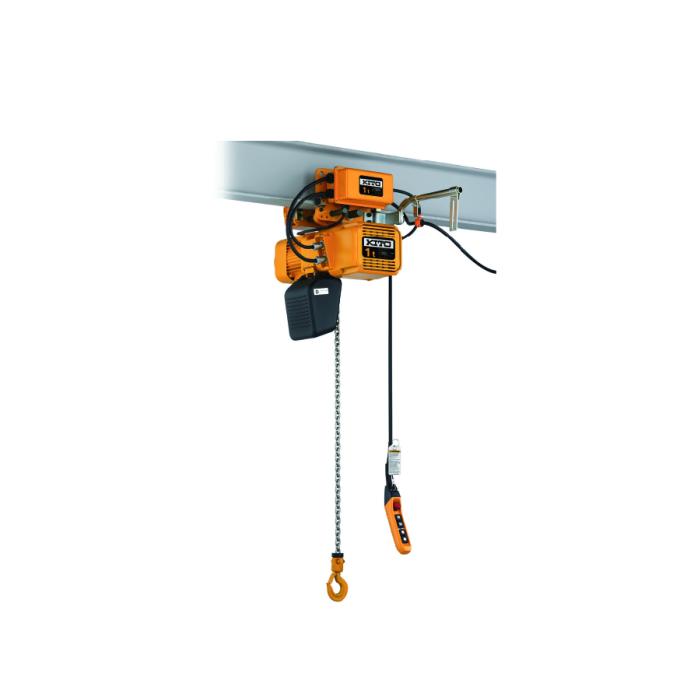

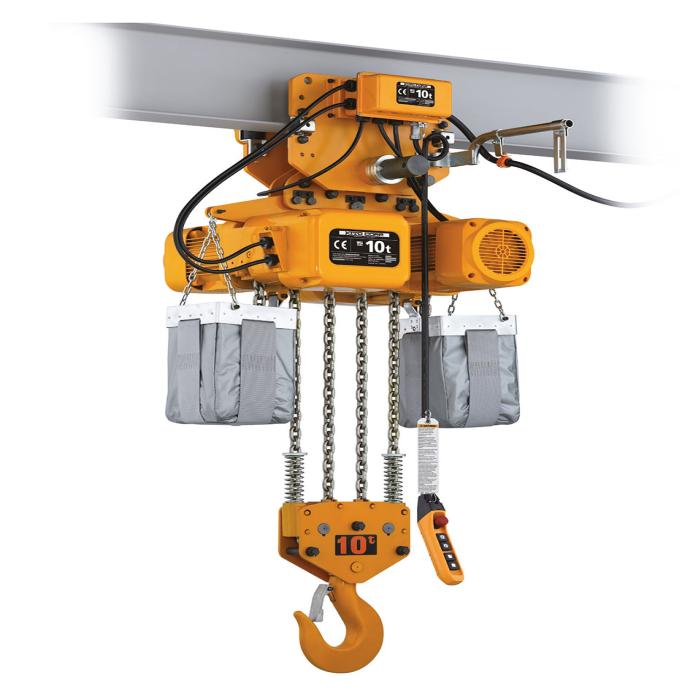

Kito CHAIN HOIST 10TON 4 WAYS 220 V, Made In Japan ER2M100S-L
60,708
Chain hoist
CHAIN HOIST from KITO, TROLLY, with Large Capacity, Motorized Trolley 10 TON, 3 PH, 220V
- Ten meters of power supply cable as standard accompanies
- Optional length of lift, push button cord and power supply cable besides standard is available on your request
- Extending the load chain is prohibited with additional links
- Steel chain containers are available as option as shown in Section of "Chain Containers" if your lift is more than capacity of the standard container volume
| Capacity(t) | 10 |
|---|---|
| Hoist Body | F |
| Standard Lift (m) | 3 |
| Push Button Cord L (m) | 3.3 |
| Lifting Motor | |
| Output (kW) | 3.5x2 |
| Rating (%ED) | 60 |
| Lifting Speed (m | min) / 50Hz: 2.9 / 60Hz: 3.5 |
| Load Chain: Diameter (mm) x Chain Falls | 11.2 x 4 |
| Classification ISO | FEM/ASME: M4/1Am/H4 |
| Traversing Motor | |
| Output (kW) | 0.75 |
| Rating (%ED) | 40 |
| Traversing Speed (m | min) / 50Hz: 10 / 60Hz :24 12 |
| Flange Width B (mm) | |
| Standard | 150 to 220 |
| Option W30 (305mm) | 221 to 305 |
| Min.Radius Curve (mm) | 2500 |
| Test Load (t) | 12.5 |
| Net Weight (kg) | 399 |
| Additional Weight per 1m Lift (kg) | 11 |
| Weight | 399 KG |
| Code | 40-01-066 |
| ID | 2205520 |
